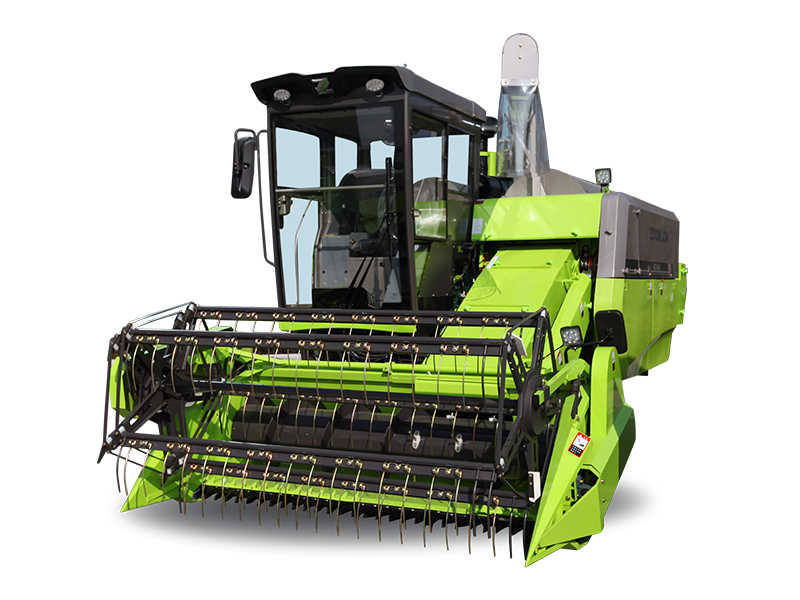

Zoomlion FH120C rice corn grain combine harvester

Ingenuity made, High Efficiency

120hp

Horse Power

2200mm

Cutting table width

3300kg

Weight

Get Quote

Product comparison

Product comparison

Total X Clear all

Zoomlion FH120C rice corn grain combine harvester

Features

Higher Efficiency

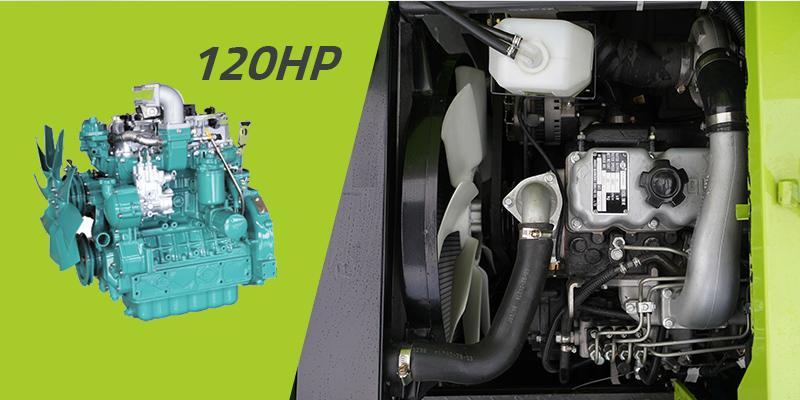

It is equipped with 120hp well-known domestic brand engine, with high power,

large torque reserve, high working efficiency.

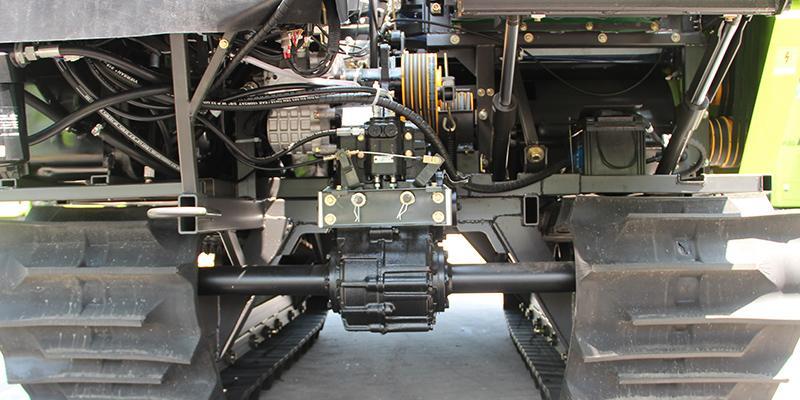

Matched 45cc HST, 80A gearbox, high transmission efficiency and fast working speed.

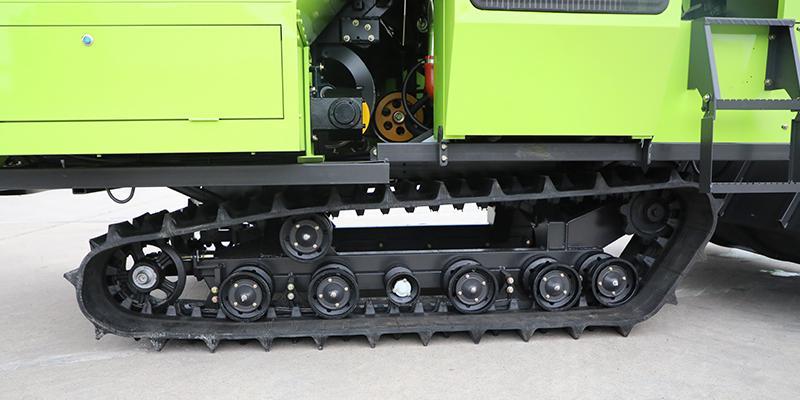

Matched with 53section crawlers, which increases the contact area with the ground,

and the whole machine has good pass-ability .

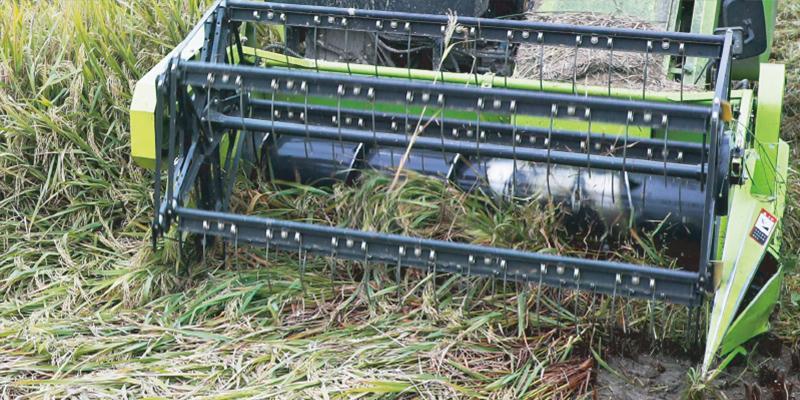

Using large arc spring teeth, which can reach to be underneath of the cutter to harvest lodging straw better.

The granary is enlarged to 1.53 m³ , big 160L diesel tank makes longer working time.

The reel belt drive on the left side of the header is upgraded to a chain drive,

which makes the transmission more efficient.

The diameter of the No. 1 vertical auger is increased to 168mm, and the end of the horizontal auger is increased by an 80mm arc baffle,

which has a stronger lifting capacity.

The reel is added with an anti-wrapping tube to prevent the reel from being entangled with the grass,

making it easier to feed.

The No. 1 vertical auger is connected with the granary with a hoop,

which is more convenient for maintenance.

45mm header cylinder diameter, faster lifting speed of header.

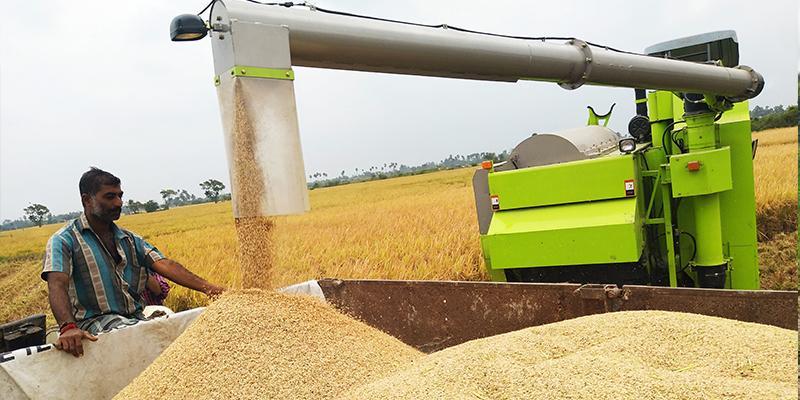

The grain unloading device can rotate left and right to improve the user's grain unloading efficiency.

Higher reliable

The walking belt tensioner bracket is extended by 20mm,

and the tensioner is moved backward by 50mm, which makes the work more reliable.

Sensor of granary full adopts international quality products, dustproof and waterproof.

The support wheel body is widened, the bearing is pressurized and lubricated,

the sealing performance is good, and the service life is longer.

The diameter of the reel belt spring is increased to 4.5mm,

the tension structure is more reasonable, and the service life is longer.

The material of the front reinforcement plate of the threshing drum blade is changed to wear-resistant material,

which has a longer service life.

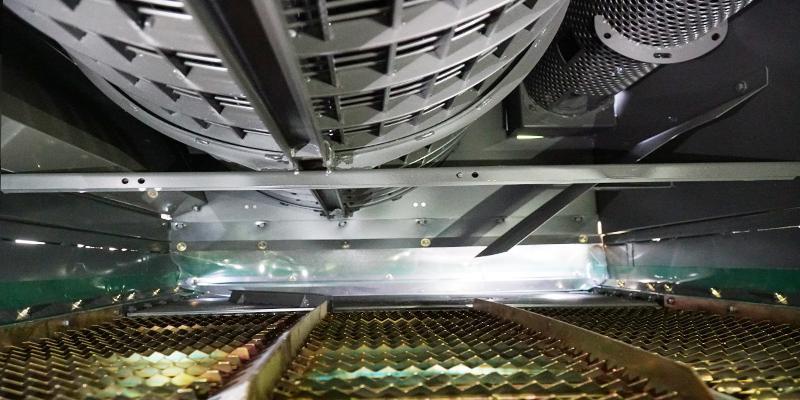

The structure of the vibrating screen is optimized and upgraded,

the weight of the vibrating screen is reduced, and the maintenance cost is reduced.

The sealing structure of the water tank cover to canopy model is newly upgraded,

optimize the heat dissipation effect of the engine.

More adoptable

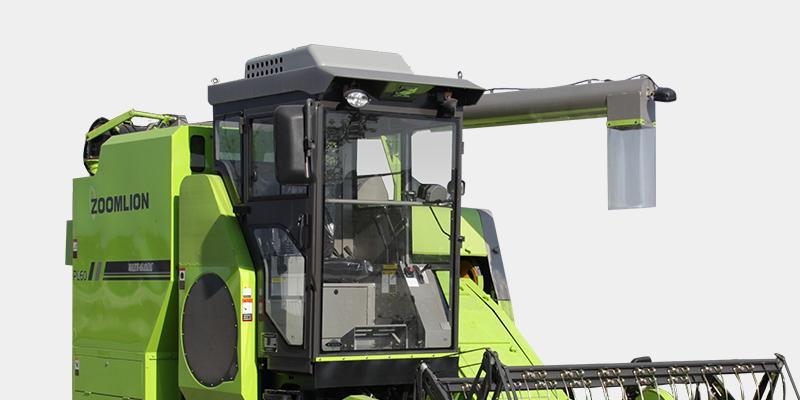

The new cab, dustproof, noise reduction, heat insulation, more comfortable operation.

The rear axle of the vibrating screen drives the single-side counterweight to be adjusted to

a double-side counterweight structure to reduce the vibration of the whole machine.

The ground clearance at the bottom of the divider is increased to 100mm,

more smooth to harvest the lodging.

Optimize the operating system structure of canopy model,

making the operation more flexible and easy, and the ergonomics is more reasonable.

Corn harvesting device option to realize multiple function for one machine.

Product Parameters

Model		Unit	FH120(PL60)
Structure		/	Full-feeding crawler type
Engine	Brand model	/	Quanchai 4C6-120M22
	Type	/	Four-cylinder,In-line,Water cooling,
	Power	kW/hp	88/120
	Rated speed	r/min	2400
Dimension (L × W × H)		mm	5455×2530×2885
Weight		kg	3300
Cutting width		mm	2200
Feeding capacity		t/h	21.6
Min Ground Clearance		mm	315
Walking speed		km/h	Low speed 0～4.4 High speed 0～7.5
Operation Productivity		hm²/h	0.4～0.75
Fuel consumption		kg/hm²	≤33
Fuel Tank Capacity		L	160
Threshing drum	Model	/	Longitudinal
Threshing drum	Outer Diameter×Length	mm	φ620×2000
Crawler	Pitch×Section×Width	/	90mm×53节 section×450mm
Crawler	Gauge	mm	1150
Cab		/	Air-conditioned cab
Gearbox model		/	45ml/r HST + 80 AGEARBOX
Unloading		/	270°Hydraulic Unloading, 1.53m³ granary
