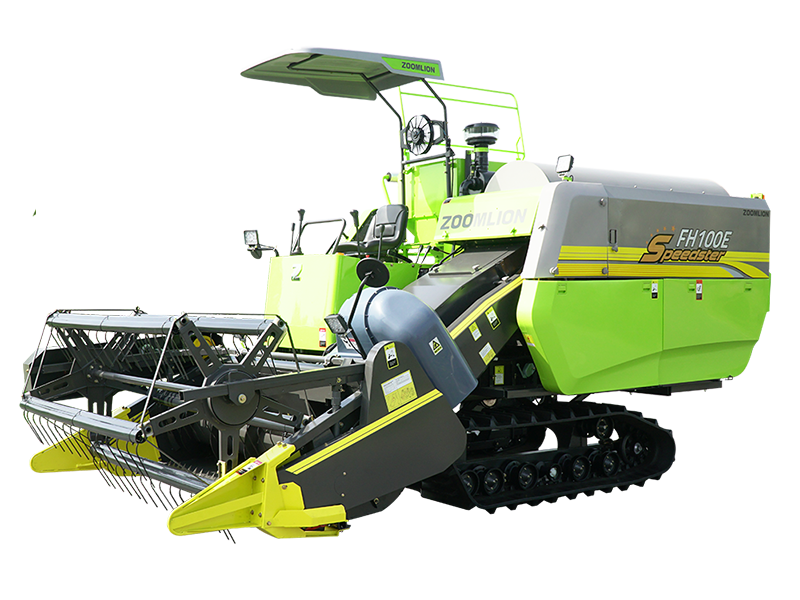

GlobalZoomlion FH100E rice corn grain combine harvester
100hp
Horse Power
2000mm
Cutting table width
3260kg
Weight
- Product comparison
Features
High Efficiency
It is Equipped with high quality diesel engine , with strong power, l
arge torque reserve and high operating efficiency.

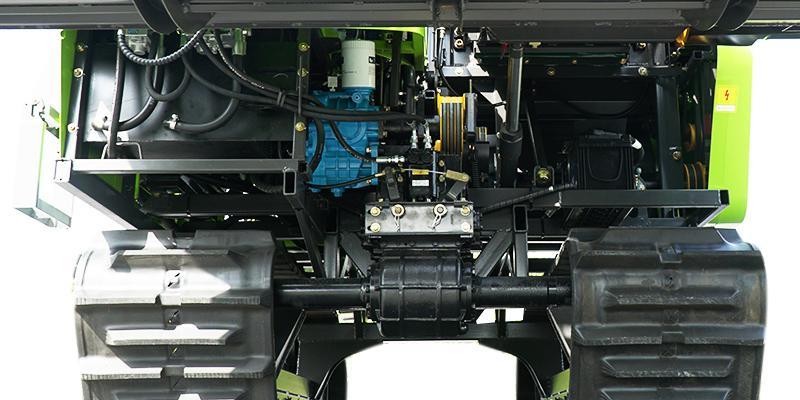

HST of 45 displacement is matched with the 85 gearbox,
with high gearing efficiency and fast operating speed, and the maximum speed can reach 9.5km/h.
The big radian elastic tooth is adopted, and the elastic tooth can fall below the cutter.
The angle of the support of reel is optimized, with better effect of harvest lodging.
High Reliability

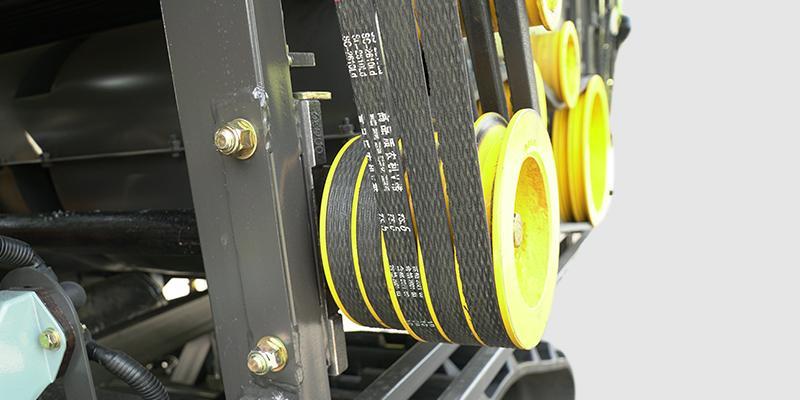

The high quality belt is adopted for the running and working main clutch and driving system,
with higher transmission power and reliability.
The support wheel structure has been newly upgraded,
with high-pressure bearing lubrication, good sealing, higher reliability;
The support wheel has been widened and the contact area with the crawler has been increased by 16%,
which greatly improved the service life of the crawler.
The hydraulic hose has been upgraded to the double wound steel wire structure,
and the brand supply of high-quality is designated, with strong bearing capacity.
Grid baffle is added at the fan inlet to prevent the grain bag from being inhaled.
High Adaptability
The circular divider, which is not easy to damage the ridge.

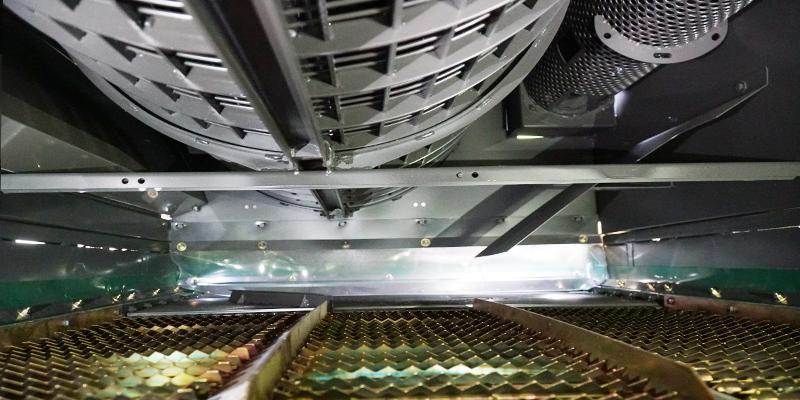

It is equipped with the independent integrated re-threshing roller,
with strong adaptability and better re-threshing effectiveness.
Corn harvesting device option to realize multiple function for one machine.

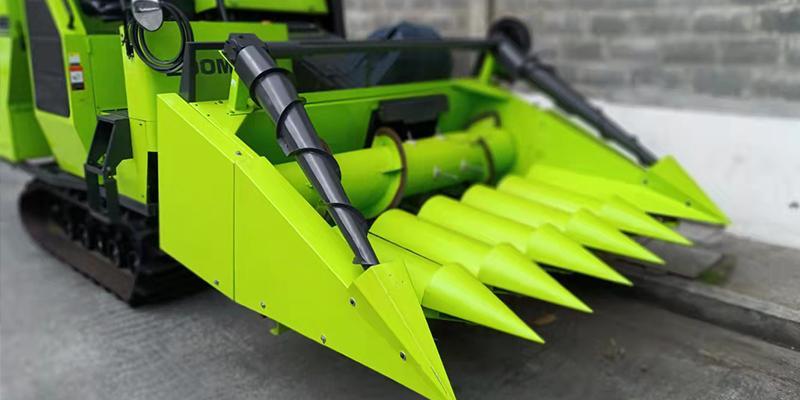

Maize header
Modification parts: header, drum, screen box, pulley, cylinder, etc.
The gear box of the header is driven by spiral bevel gear, which features high transmission efficiency, smooth transmission,
high bearing capacity, compact structure, wear resistance, long life and low noise.
It adopts the cantilever structure to eliminate damage to front stalk pulling parts and various adjustment difficulties,
featuring light weight, elegance and utility.
The mounting form is consistent with the original form of the machinery to harvest on both big and small ridges.
The header features stable harvesting, high efficiency,
good chopping effect of the stalk pulling roller and thorough threshing.
Product Parameters
|
Model |
Unit |
FH100E |
|
|
Structure type |
/ |
Crawler full feeding |
|
|
Engine |
Model |
/ |
Diesel engine 4C6-100M22 |
|
Structure type |
/ |
Four cylinders, in line, water cooled |
|
|
Calibration power |
kW |
73.5 |
|
|
Calibration speed |
r/min |
2400 |
|
|
Dimension（L×W×H） |
mm |
5105×2500×2800 |
|
|
Weight |
kg |
3260 |
|
|
Cutting table width |
mm |
2000 |
|
|
Feed quantity |
t/h |
14.4 |
|
|
Minimum ground clearance |
mm |
325 |
|
|
Operation speed |
km/h |
Low speed0～4.4 High speed0～7.5 |
|
|
Work hour productivity |
hm2/h |
0.4～0.75 |
|
|
Fuel consumption |
kg/hm2 |
≤33 |
|
|
Fuel tank capacity |
L |
140 |
|
|
Threshing Drum |
Type |
/ |
Longitudinal |
|
Outer Diameter × Length |
mm |
φ620×2000 |
|
|
Crawler |
Pitch×section number×width |
/ |
90mm×53×500mm |
|
Gauge |
mm |
1250 |
|
|
Cab type |
|
Sunshade shed (No fans) |
|
|
Gearbox type |
/ |
45ml/r HST ,85 gearbox |
|
|
Grain unloading mode |
/ |
Manual handling of grain,0.33m³ granary |
|
Parameters of maize header:
| Number of ridges |
row |
6 |
|
Mating power |
kW |
65-85 |
|
Ridge space |
mm |
550, 600, 650, 700, 750 and 800 |
|
Operation breadth |
mm |
2050 |
|
Weight |
kg |
650 |
|
Efficiency |
m/s |
3 |
|
Grain loss rate |
/ |
≤3% |
|
Operating water content |
/ |
≤16% |
