Zoomlion AC60C Wheeled Sugarcane Harvester

Strong power:Cummins six cylinder engine

190-204hp

Horse Power

8800kg

Weight

≥1200mm

Row spacing

Get Quote

Product comparison

Product comparison

Total X Clear all

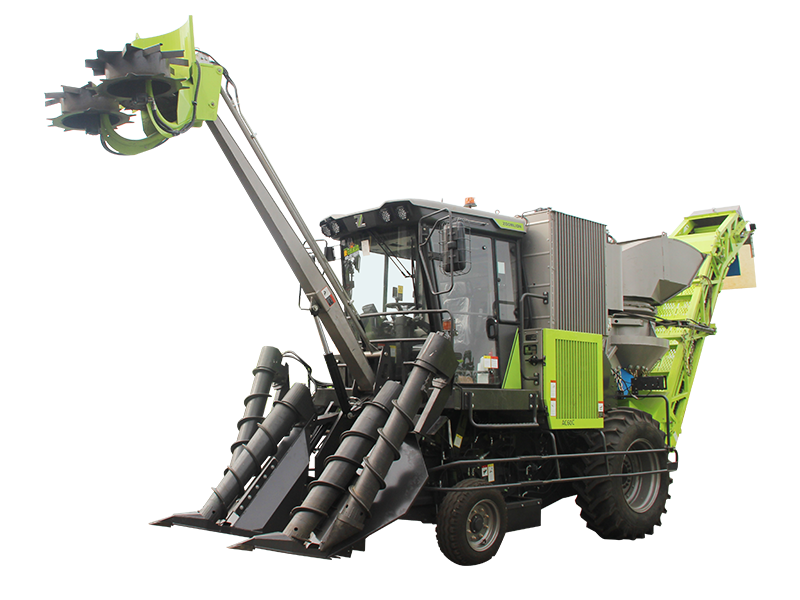

Zoomlion AC60C Wheeled Sugarcane Harvester

Features

High performance

Suitable for working on slope below 10°and field over 1.2m row spacing.

Wheel drive, driving power is 20% larger than other counterparts, fast for transferring cane field.

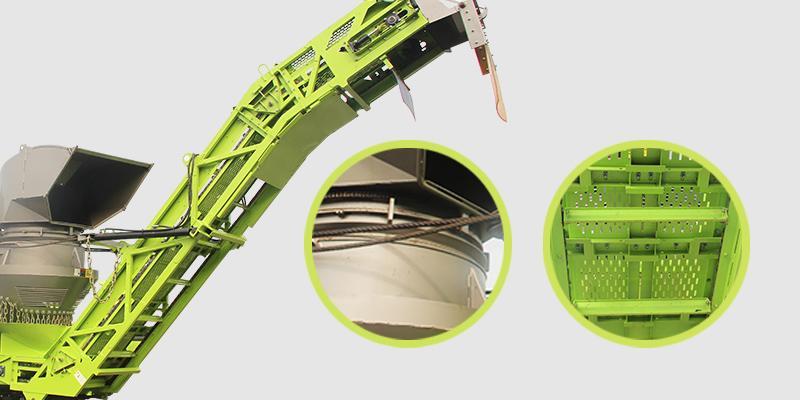

New generation of conveying arm, bending support quick disassembly,

steel wire rope pull belt structure, stability greatly improved.

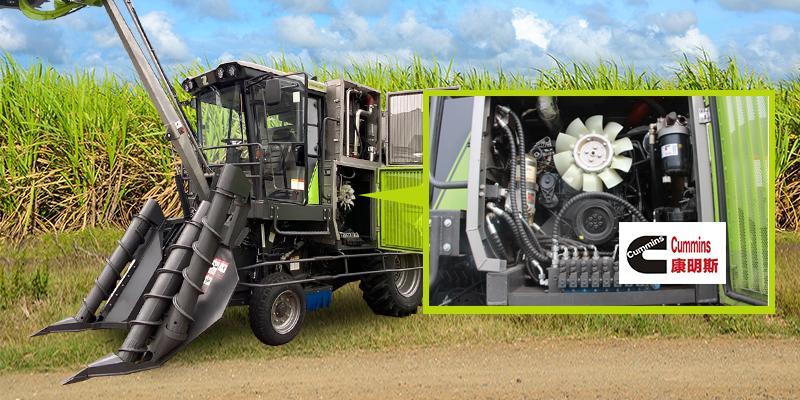

Equipped with 190HP(Max 204HP) Cummins six cylinder engine, strong power,

low fuel consumption, reliable performance.

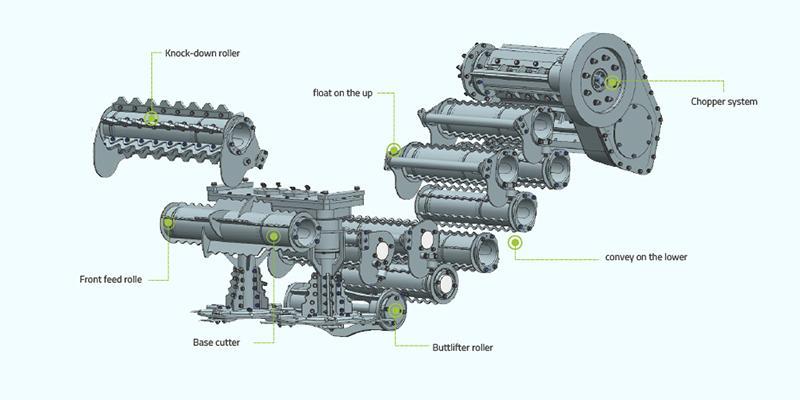

Conveying channel adopts automatic variable-diameter conveying technology,

which can automatically adjust the harvesting height according to the feeding quantity

to adapt to different sugarcane diameters and feeding volume,

which prevents crushing of sugarcane and blocking of conveying path.

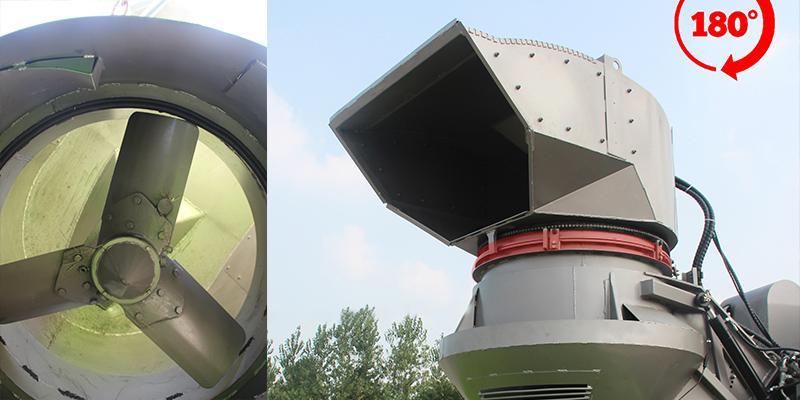

Extractor is designed as a barrel structure, in which an axial flow blower is installed and driven by hydraulic motor,

Strong upflow is formed such that cane impurities can be easily cleaned.

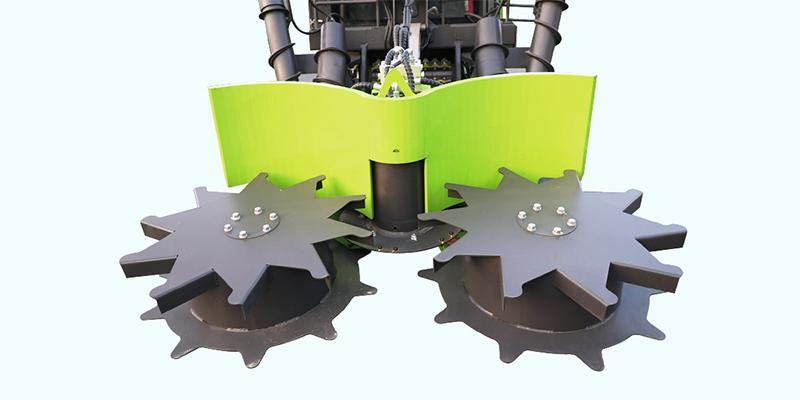

Topper system including dividing disc and cutter disc, Topper’s drums gather and cut the tops efficiently,

cut off top in one piece and spread out the tops away from the unharvesting rows,

which avoids tops second time harvesting and decreases impurity rate.

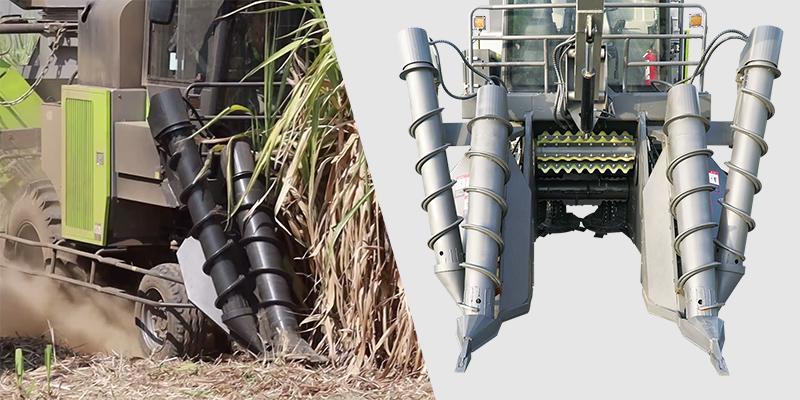

Bidirectional spiral rollers, which are independent of each other

when it is undulating on the left and right and making sugarcane splitting.

They move up and down, back and forth respectively to adapt to the sugarcane with

different lodging postures according to the actual status of sugarcane in the field.

Intelligent control

The system of harvester adopts software control, which can effectively monitor the real-time data from the sensors,

achieving malfunction diagnosis intelligently.

Liquid indicator is placed in cab and by observing that operator can conveniently control basecutter height to meet different demands.

By setting the controller, harvester does not work within five minutes,

the controller will automatically input the “idle speed” command to engine through the CAN bus,

and the engine will enter the idle state to reduce the fuel consumption of the machine.

Water tank and hydraulic oil tank adopts concentrated heat radiator;

Wind speed of radiator fan,Can achieve automatic adjustment according to the changing of the environment;

radiator fan can rotate reversely to automatically clean debris in order to ensure normal operation of the engine.

Cozy operation

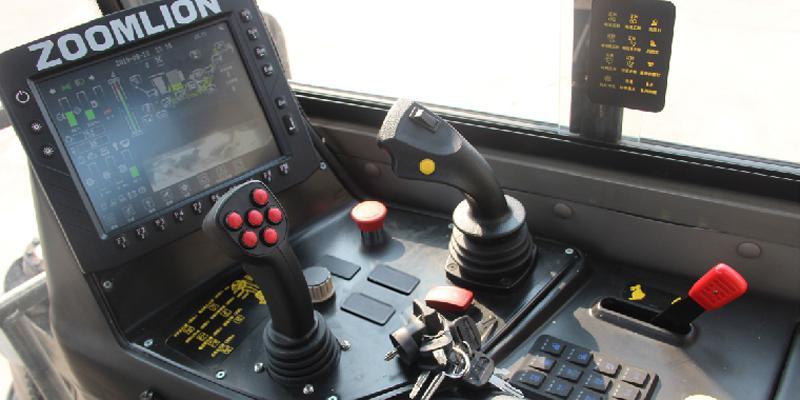

The hydraulic motors of sugarcane harvester can realize one-key operation through

the buttons on CAN panel so that the operation is more accurate and comfortable.

For example, base cutter feeding system and unloading system;

Harvester’s all transmissions are controlled by hydraulic joystick,

and the forward/reverse operation is more comfortable;

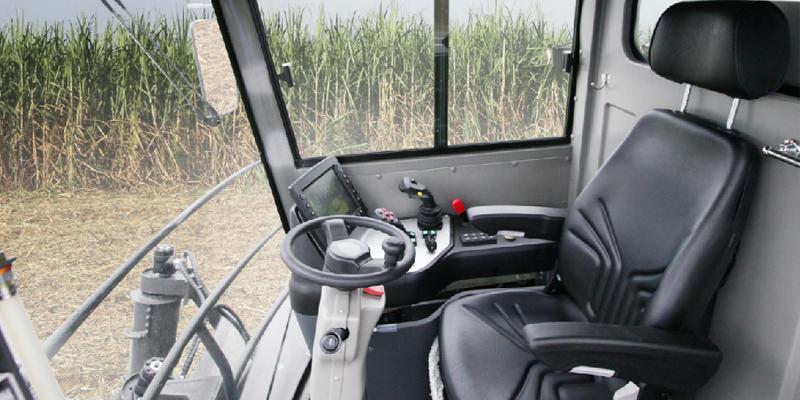

Luxury air-conditioned cab, good cooling performance;

front windshield enables good vision, adjustable seat used, driving is more cozy.

Reliable

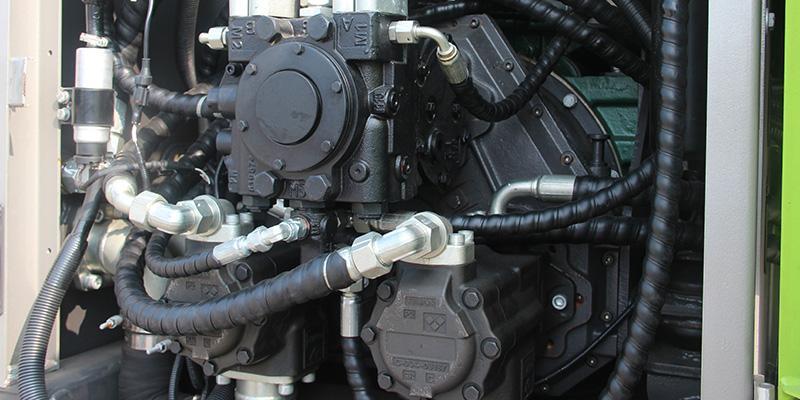

The load-sensitive hydraulic system can automatically control the flow distribution to meet the dynamic load requirements of the whole machine.

All electrical components are selected from European and American imported brand suppliers.

The connectors are waterproof, dustproof and anti-loose, and the wire harness quality is reliable.

Product Parameters

Mode		Unit	AC60C
Harvester	Size（L×W×H）	mm	7800×2290×4190(min) 12800×6100×4880(max)
Harvester	Weight	kg	8800
Engine	Engine brand	/	Cummins QSB7
	Engine type	/	In-line 6 cylinder
	Displacement	L	6.87
	Power	kW	140(Max150)
	Rotation speed	r/min	2050
	Fuel capacity	L	200
Driving	Front track	mm	1580
	Rear track	mm	1610
	Driving speed	km/h	0~18
	Ground clearance	mm	230
Adaptability	Row spacing	mm	≥1200
	Suitable ridge height	mm	0~200
	Suitable slope	%	≤10
Performance	Feeding capacity	kg/s	6
	Net work hour productivity	t/h	＞15
	Loss rate	%	≤7
	Impurity rate	%	≤8
	Sugarcane acceptability	%	≥90
Others	Hydraulic oil capacity	L	180
Basic configuration details
Basic accessories	Cab with air-conditioner and heating system	●
	Adjustable seat	●
	Adjustable side mirror	●
	Wiper	●
	Fire extinguisher	●
	Reverse warning device	●
	Cab working lamp	●
	Signal lamp and warning lamp	●
	Working lamp (including headlight)	●
	Am/Fm radio	●
