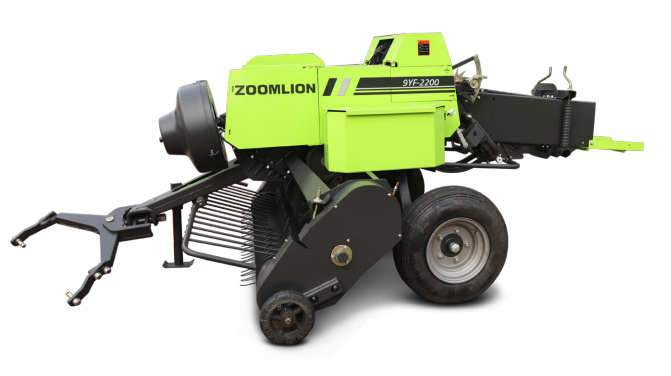

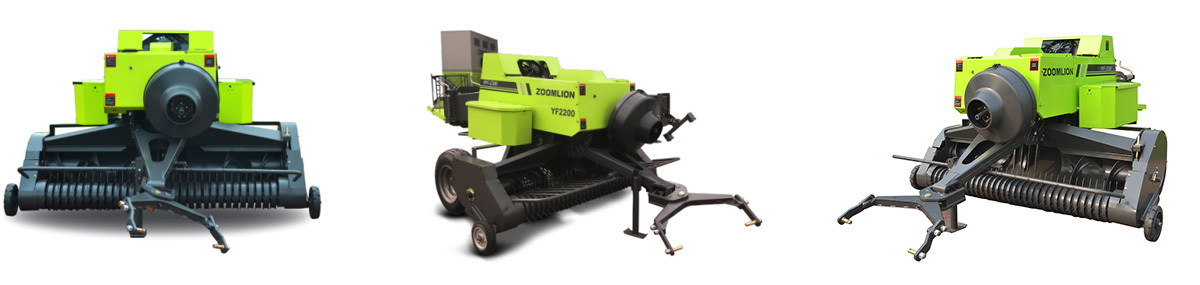

9YF-2200

Efficient baling of wheat, corn stalks and hay. Fast, clean and compact baling with a pickup table suitable for all terrains.

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

Key Features: Clean Picking

The double-axis four-helix linear arrangement of hammer claws and wire kneading knives , the integrated post-weld processed hammer claw roller and crushing knife roller structure, high-speed rotation without shaking, stable and reliable.

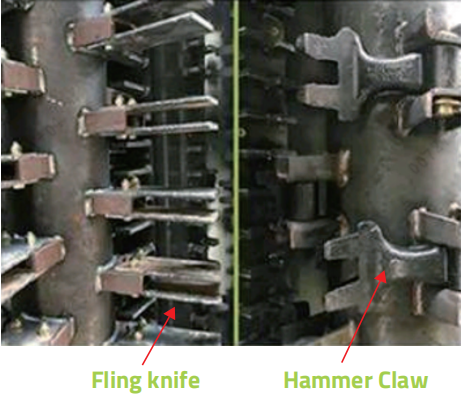

Unique dual -axis four-helix linear arrangement hammer claw

+ kneading knife structure design

▪ Integrated post-weld processing, stable operation with- out shaking ;

▪ Hammer claw + kneading knife structure, the kneading is more delicate .

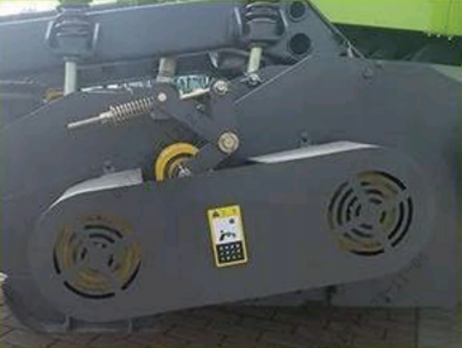

Double spring suspension hook structure design

▪ The picker can touch the ground to work, and the anti-de- formation picking effect is good;

▪ The pickup is overall suspended and hung, with good shock absorption effect.

Zoomlion

Pick up cleanly and

knead silk

with good effect

Key Features: High-Strength And Dense Baling

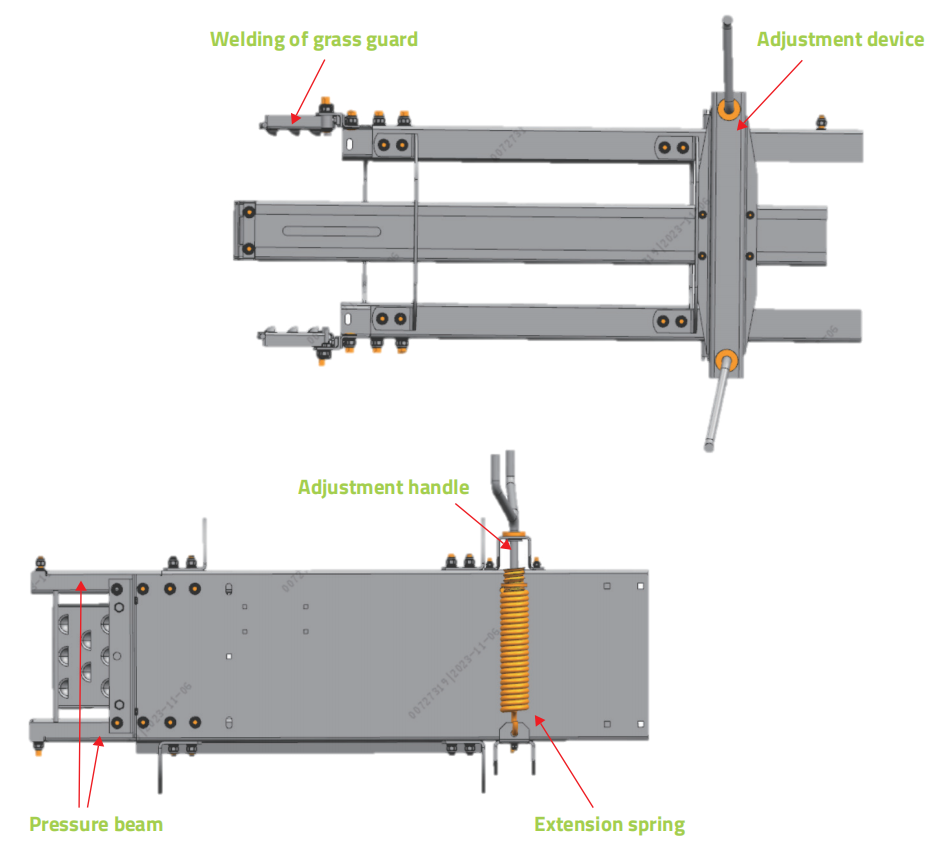

The straw strips are compacted by welding the grass baffles and pressing beams, and the density of the straw bale can be adjusted by the adjusting device.

Zoomlion

Adjustable baling density

The length of the tension spring is changed by rotating the adjusting handle, thereby changing the distance between the two pressure beams, so that the density of the straw bale can be adjusted.

Key Features: Efficient Operation

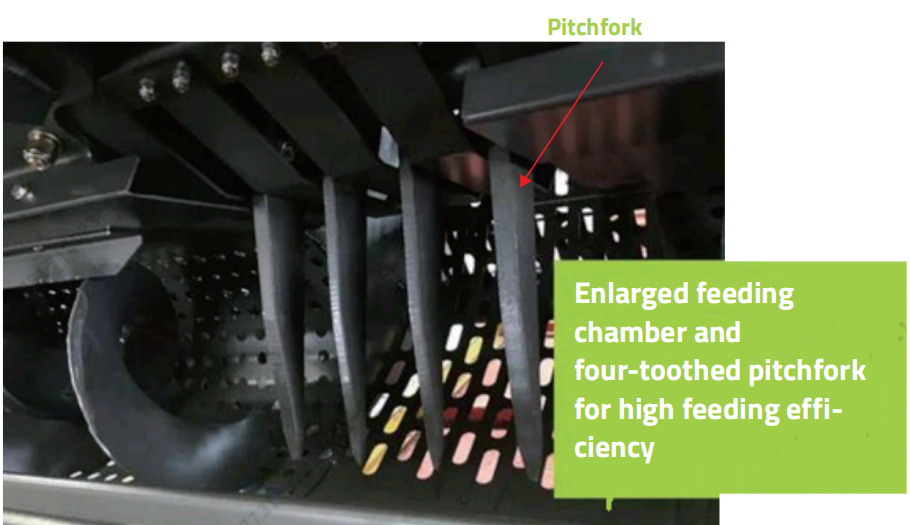

Four-toothed pitchfork, enlarged feeding chamber, smooth feeding without blockage

Zoomlion

Uniform + efficient

The feeding space is large, the force is evenly distributed and there is no blockage.

Zoomlion

Key Features: High Reliability

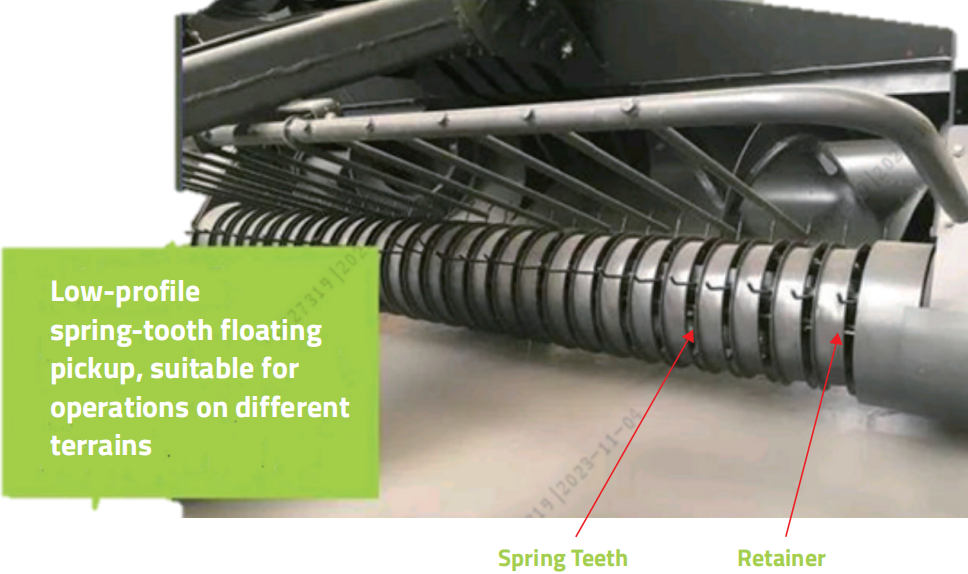

Floating cam anti-shaped spring tooth pickup , high reliability

The tine material is optimized and the unique anti-grass device increases the life of the tine by more than 30% compared to ordinary tine .

Zoomlion

High reliability

▪ The spring teeth are made of high-strength spring steel;

▪ The cam disc is made of high-strength material, highly wear-resistant and long service life;

▪ The retaining ring has high strength, long service life, can be quickly disassembled and assembled, and is easy to maintain.

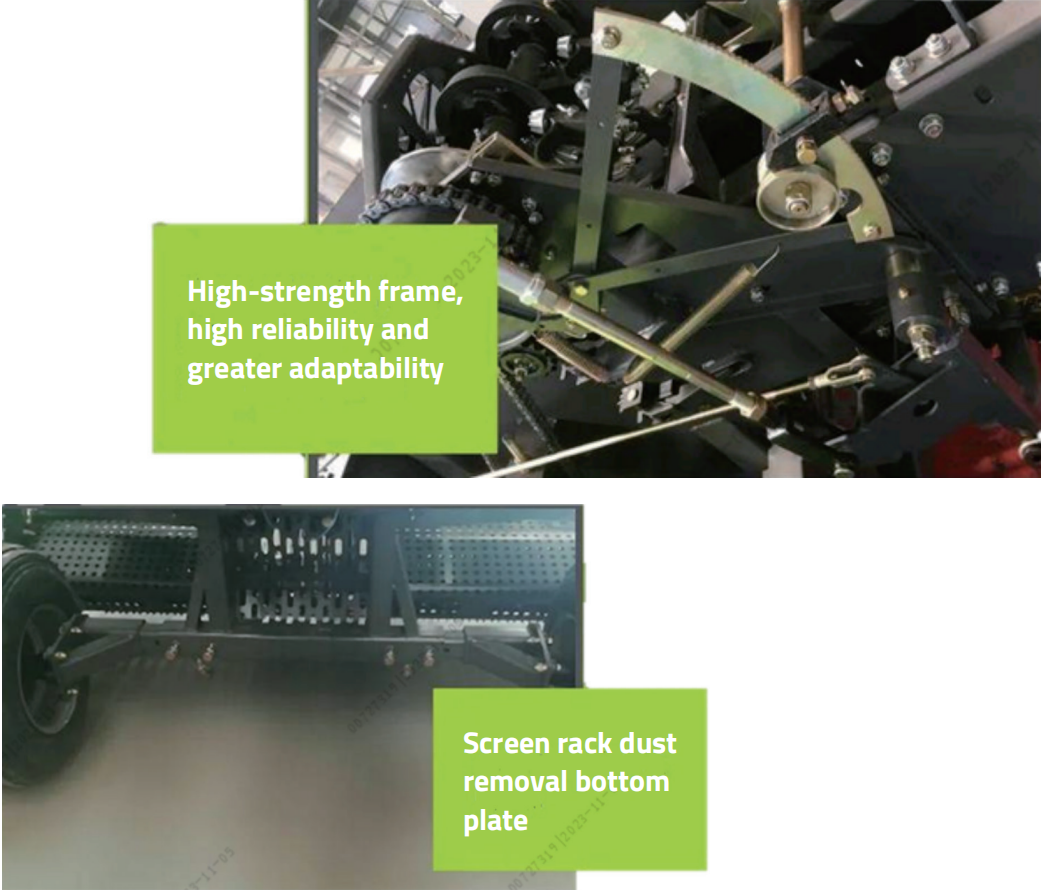

High-strength manganese steel frame and screen-type structure design increase the service life of the frame

Zoomlion

Long service life

The frame is made of high-strength plate and screen-type structure design, with low wear and high reliability

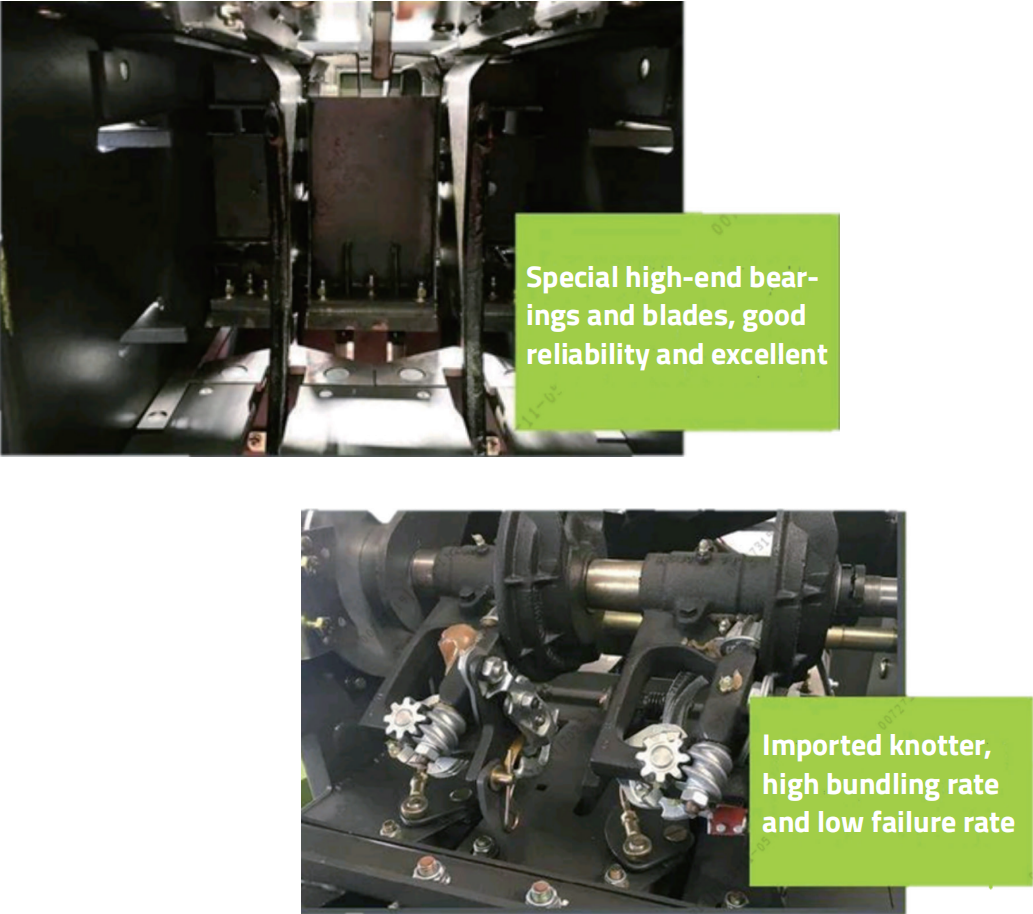

Imported bearings are used in key parts, with low failure rate and long service life;

imported knotters have high bundling rate and low failure rate.

Zoomlion

Low failure rate , high bundling rate, and strong parts commonality

▪ Imported bearings are used in key parts, which increase the service life by 30% compared with ordinary bearings ;

▪ Imported knotters have a low failure rate and their spare parts are widely used in the market.

Product Parameters

STRUCTURE	TYPE	PICK-UP TYPE
MAIN PARAMETERS	Overall dimensions (length x width x height) /mm Machine weight /kg Pickup width /mm Knotter Type Knot tying machine quantity / piece Bale cross section ( width x height )/mm Bale length /mm Number of pickup gears Twine capacity Matching power / horsepower Transmission shaft speed /r/min	4800×2870×1750
		1740
		2200
		Type
		2
		460×360
		350 ～ 1200
		3
		6 bundles
		50~70
		540
IMPROVED RELIABILITY	Key bearings	Imported bearings
