9YY-2200

HIGH COST PERFORMANCE AND HIGH RETURN ON INVESTMENT 9YY-2200 traction round baler is our company's equipment for baling wheat , rice, forage, corn, sunflower and other straw . This model has gone through a 5-year R&D cycle and 3-year market verification in China. There are more than 1,000 units in China. It meets market demand in terms of adaptability, operating efficiency, picking effect, and baling density. It is our company's most mature and cost-effective model.

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

Key Features: Clean Picking

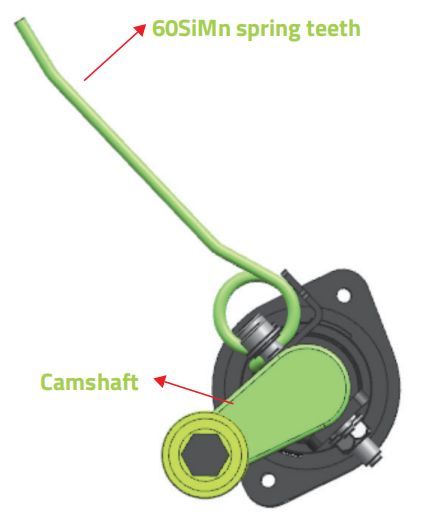

Unique spring-tooth beam structure design

The spring teeth are made of 60Si2Mn material, which is the leading material in the industry ;

High-strength steel one-piece forged camshaft is more wear-resistant .

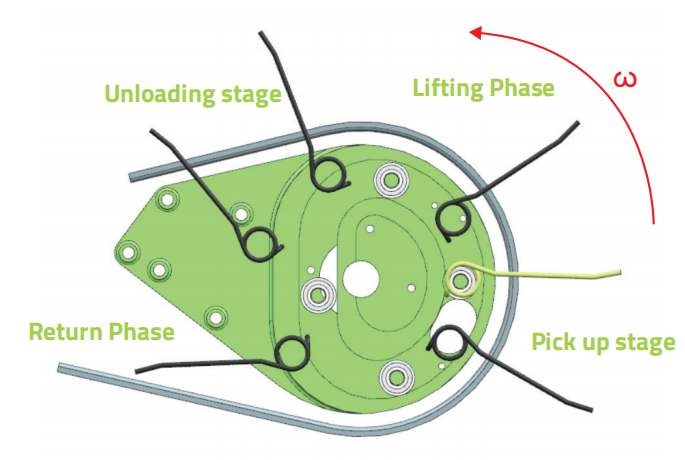

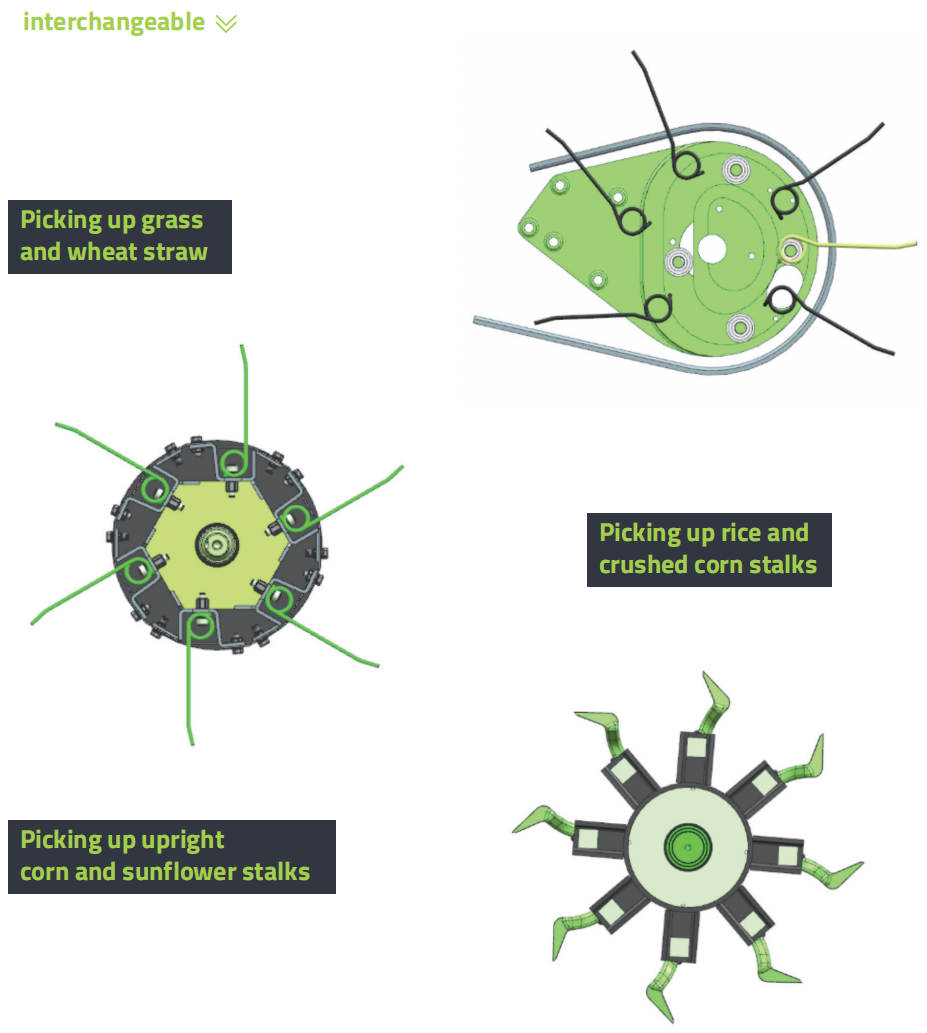

Spring tooth picking trajectory simulation technology

The cam disc is made of cast steel, which is highly wear-resistant and has a long service life.

The cam curve has been verified through simulation, and the picking effect is better.

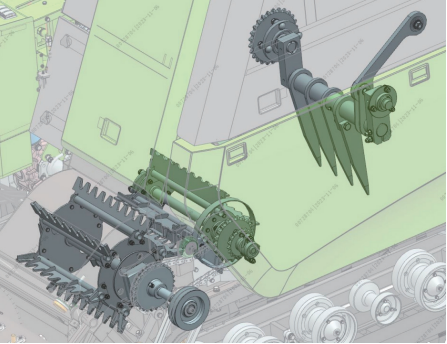

The double-feed wheel straw conveying structure designed for wet straw can effectively avoid straw blockage in the conveying area, greatly improve work efficiency, and is more suitable for paddy field crop baling .

Zoomlion

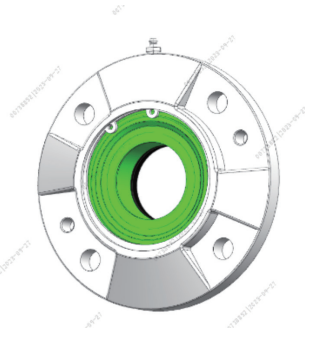

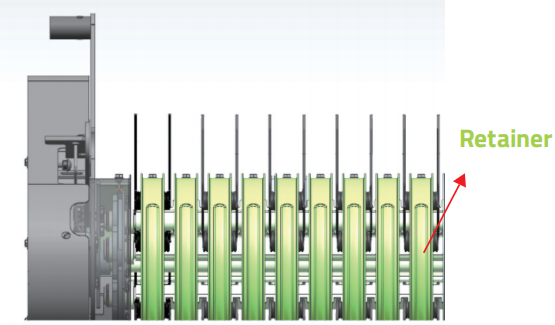

One-piece stamping retainer structure

High strength and long life;

It can be quickly disassembled and assembled, and is easy to maintain.

Zoomlion

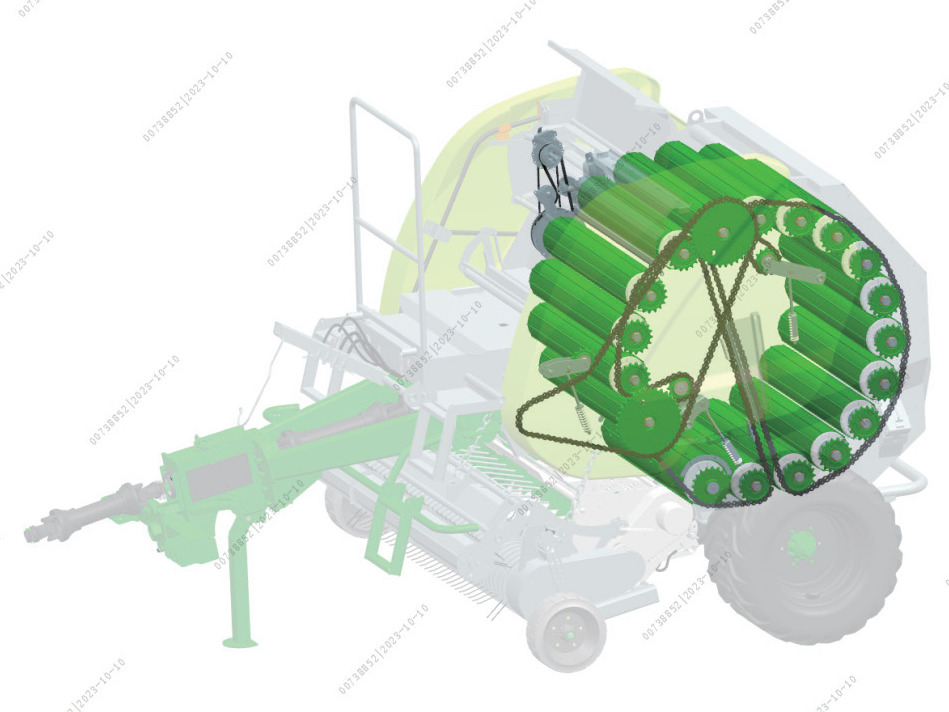

18 one-piece heavy-duty steel rollers increase the door locking force and lead the industry in baling density

Zoomlion

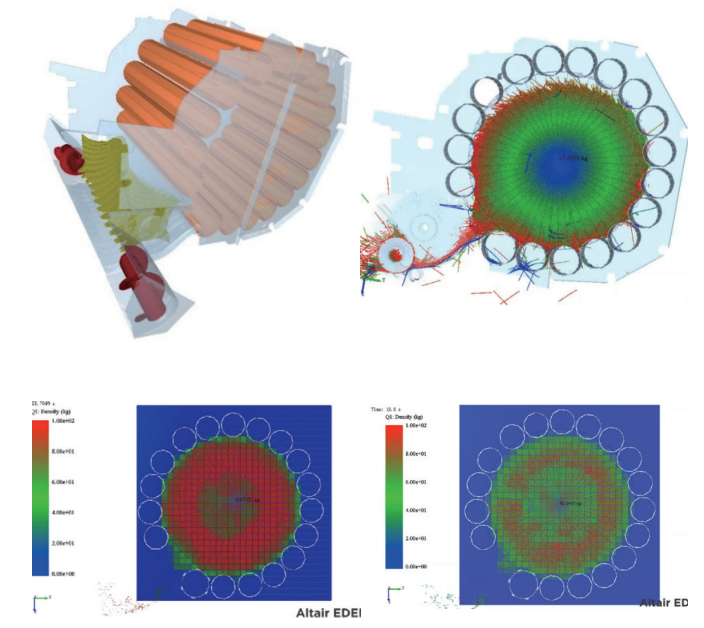

Scientific analysis using discrete element simulation technology

Zoomlion

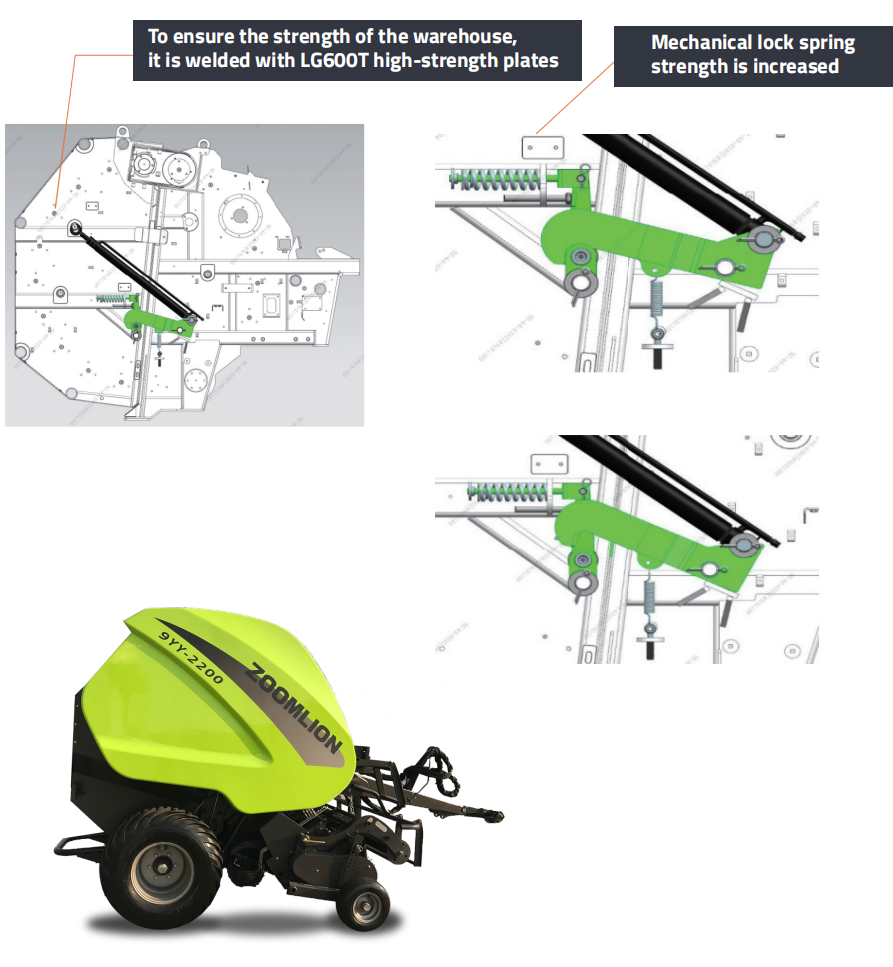

The mechanical pull rod locking mechanism combines the advantages of spring locking and hydraulic locking to increase the locking force and further improve the density.

Zoomlion

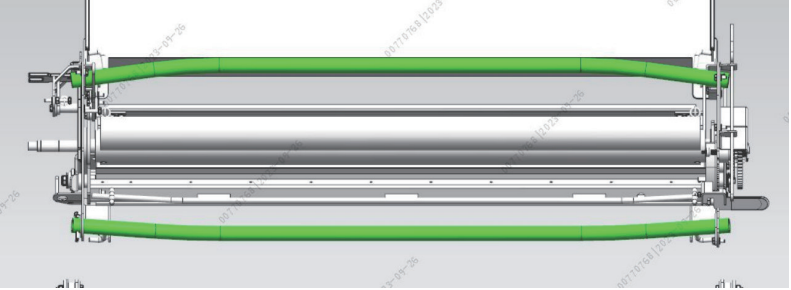

active stretch tensioning wrapping device ensures perfectly round bales with tight packing .

Zoomlion

Automatically stretches to wrap around the bale when the net is tightened

Zoomlion

Key Features: Efficient Operatio

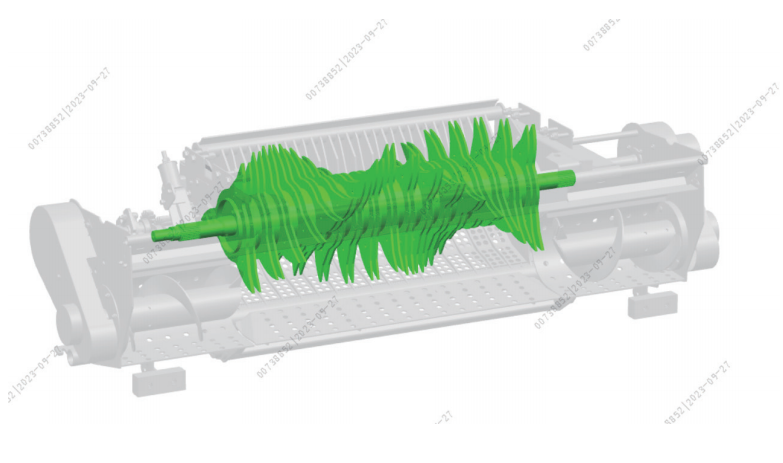

3- star spiral feed roller increases the feeding space compared to the traditional 4- star one, while taking into account the degree of refinement of the straw passing through.The symmetrical structural arrangement helps to offset the axial forces and spread the hay evenly.

Zoomlion

Uniform + efficient

Large feeding space, uniform force and no blockage

Safe + Reliable

50mm double row roller bearing, reliable and long life

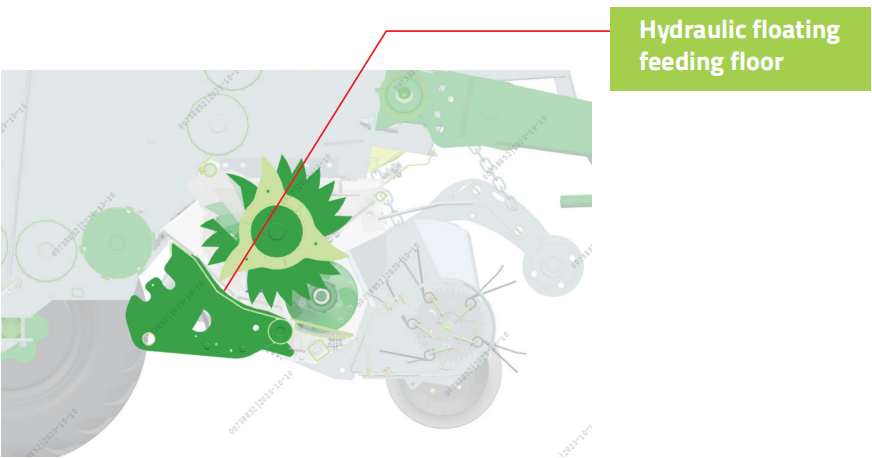

The hydraulic floating anti-blocking bottom plate can automatically adjust the width of the feeding unit channel according to the change of forage flow, so as to adapt to the uneven feeding of forage.This device avoids the chance of machine overload or grass jam, while increasing the feed volume .

Zoomlion

Better feeding results

Feeding bottom plate adaptive adjustment

Lower risk of clogging

Automatic adjustment of the feeding area

The height-infinitely adjustable suspension traction eliminates the need to cut off power when turning or crossing ridges, saving time and effort .

Zoomlion

Taking both Class II and Class III suspension into account

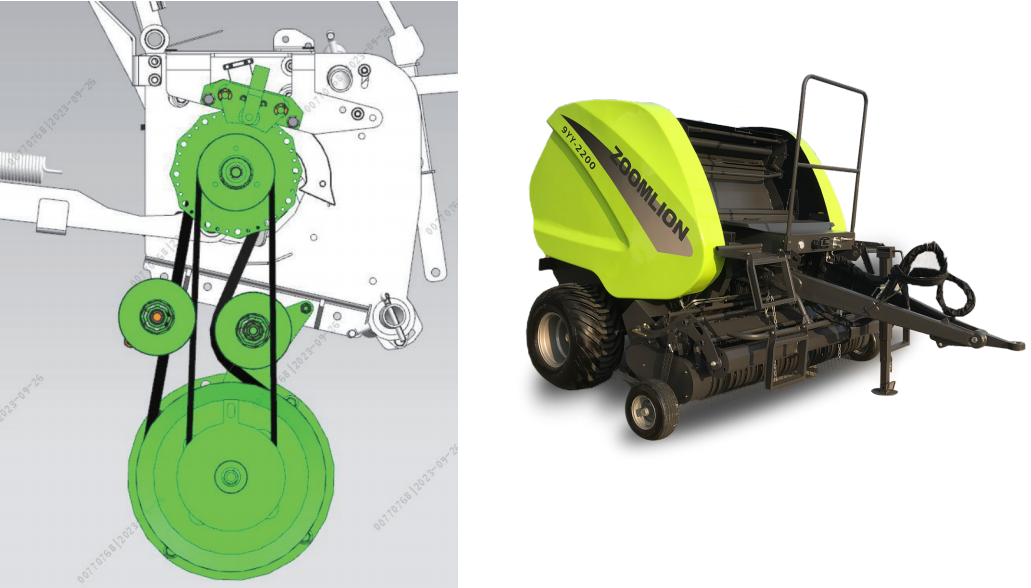

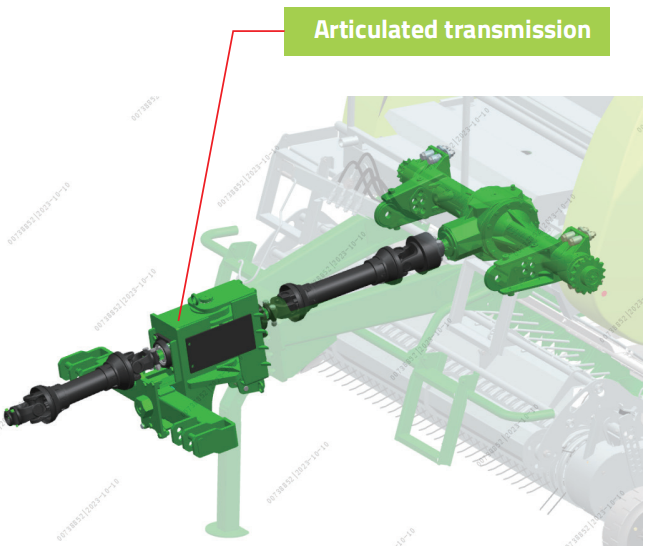

Three-stage large swing angle transmission box

Key Features: Smart And Convenient

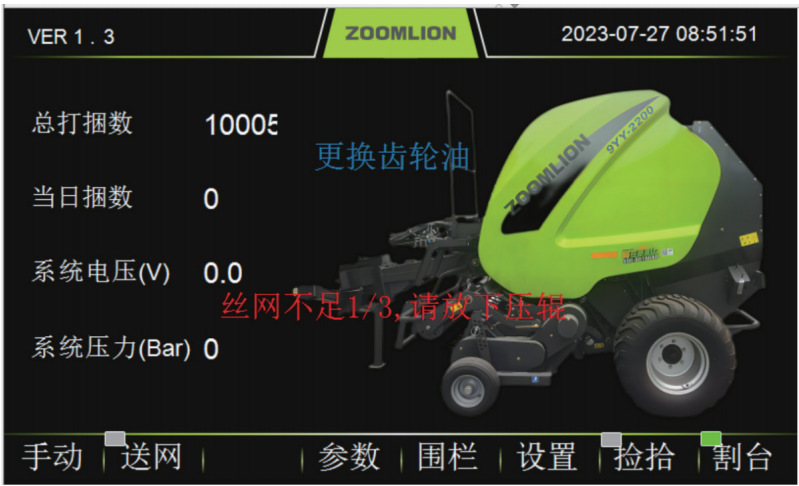

Intelligent interaction , full control of the whole machine

Zoomlion

Data Management

▪ Total bale count

▪ Bale count for the day

Mode Switching

▪ Manual / automatic, two modes can be switched with one button

▪ Pick-up / cutting platform, two sets of channels can be switched with one button

Information Tips

▪ Regular maintenance reminders;

▪ Insufficient screen prompt;

Signals are visible , allowing for quick positioning during debugging and maintenance

Zoomlion

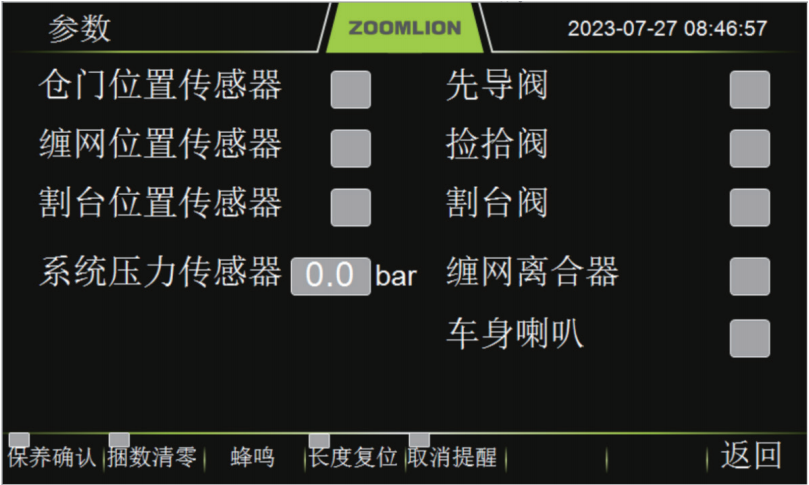

IO Monitoring

▪ Sensor input signal monitoring

▪ Solenoid valve output signal monitoring

Application

The main crops are forage grass straw, and also rice, wheat, corn, sunflower and other straw.

Zoomlion

Product Parameters

STRUCTURE	TYPE	PICK-UP TYPE
MAIN PARAMETERS	Overall dimensions (length x width x height) /mm	4280×3183×2705
	Machine weight /kg	3900
	Supporting power /kW	≥73.5
	Forming method	Entanglement
	Machine connection method	Suspension transmission
	Bale size /mm	1250×1250
	Pick up width /mm	2200
	Number of teeth / root	85
	Roller quantity / pcs	18
	Control method	Manual / Automatic
DENSITY IMPROVEMENT	Roller arrangement	Drum spiral arrangement
THREE	/	Equipped with remote monitoring system APP
