A9 crawler rice combine harvester

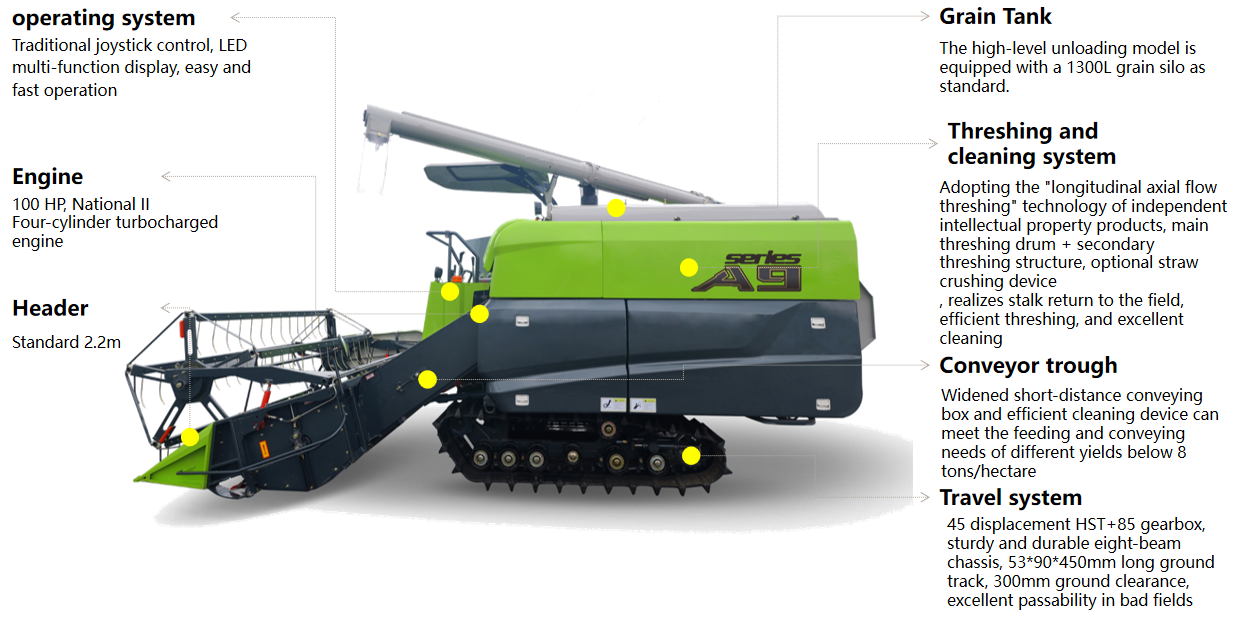

The A9 crawler combine harvester is equipped with a 100 horsepower engine and a feed rate of 6kg/s. It adopts the "longitudinal axial flow threshing" technology of independent intellectual property products, a widened short-distance conveyor box and an efficient cleaning device. It has powerful threshing and separation capabilities, a sturdy and durable chassis, and can be equipped with a variety of devices to achieve multi-crop operations. It has high grain unloading efficiency and is a powerful assistant for agricultural production.

120 hp

Horse Power

1300 litres

Grain tank capacity

6.0 kg/s

Feeding capacity up to

8.0 ha

Area per day over

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

Powerful harvesting, beautiful appearance

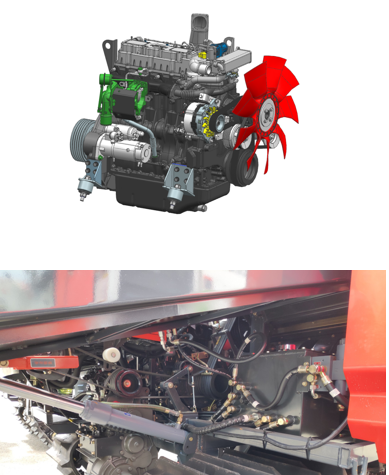

100HP high horsepower National II engine

It uses Changchai turbocharged engine, which has sufficient horsepower and is easy to maintain, ensuring that the engine fuel consumption is controlled at 20 L/ha, saving customers' investment costs.

High load-bearing capacity and stable performance

The transmission mechanical speed change structure, adopts 45cc large displacement HST+85-model high performance gearbox to ensure large power reserve, high torque and no speed drop of the whole machine, which is suitable for the power requirements of various working conditions such as transportation, overtaking and operation.

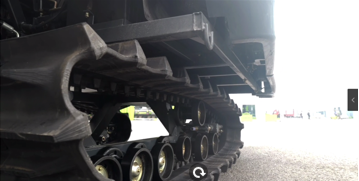

300mm mini ground clearance With a minimum ground clearance of 300mm, it can adapt to the working conditions of mud fields with a depth of less than 35cm, bringing good passing ability and suitable for field operations under various working conditions.	*450mm90mm53 patch rubber track* High-strength specially designed rubber crawler, using D-tooth crawler, has excellent self-cleaning ability	2.2m Header A variety of header options, standard 2.2m rice and wheat header, optional corn and rapeseed harvesting devices, to achieve multi-purpose use of one machine

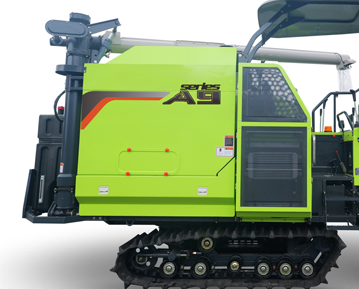

180L Fule Tank
The large-capacity fuel tank can meet the customer's daily work needs; the arc-shaped design protects the machine from colliding with pedestrians when turning, and at the same time increases the position of the fuel tank off the ground to reduce the possibility of the fuel tank colliding with the ground.

1300L granary
The standard 1300L large-capacity grain silo can effectively save operating costs and improve efficiency.

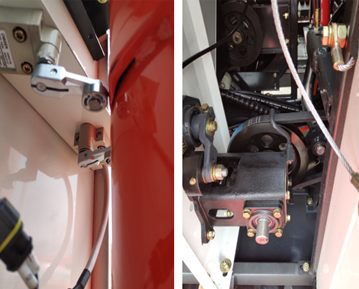

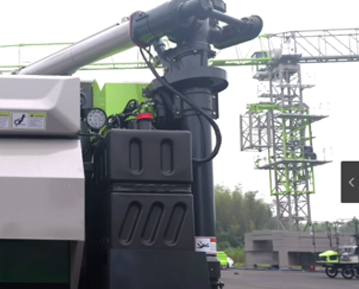

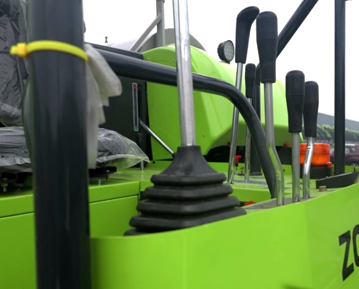

270° spherical rotation 4m long grain unloading drum- Fast speed and high efficiency ensure that the effective unloading time of a full granary is within 120 seconds, reducing the time loss of unnecessary harvesting	Widely use hydraulic and electromagnetic hydraulic control technology- Efficient joystick control, standard header and conveyor trough reversing device, simple structure, low trouble-free, easy to operate, effectively reducing operator training time	Polarized grain unloading transmission device + limit mechanism- The structure is more compact, grain unloading is faster, and it can effectively prevent the grain unloading drum from over-rotating, thus reducing the unloading time.

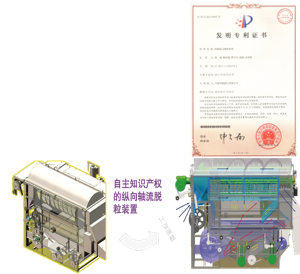

		Independent intellectual property rights- The longitudinal axial flow threshing device with independent intellectual property rights is stable, efficient and more thorough in threshing; the all-round air duct, adjustable luxury vibrating sieve, efficient re-threshing and III-stage circulation cleaning system make the grains cleaner.

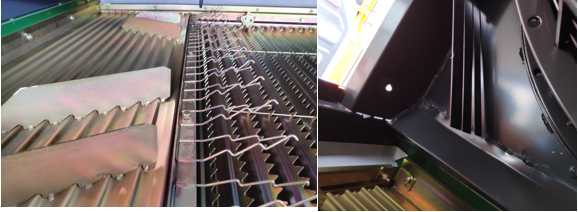

Efficient cleaning system- The vibrating screen optimizes the guide plate and adds a shaking spring to improve the cleaning effect; an elastic guide plate is added to the left inner wall of the front end of the thresher to avoid grain accumulation during high-yield operations.

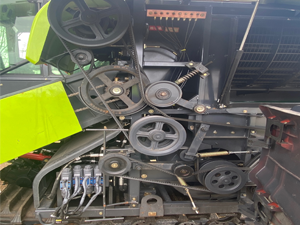

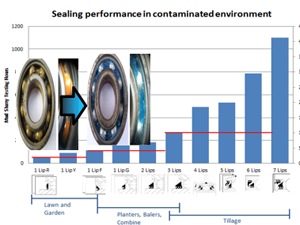

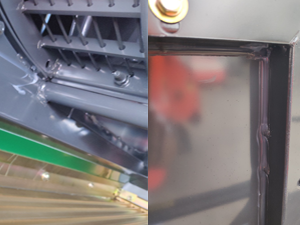

High-quality bearings and seals -extend the service life of vulnerable parts	Maintenance optimization-optimized distribution of bearing lubrication points, centralized distribution maintenance is more convenient	Add oil-proof baffles-the transmission chain side to reduce oil erosion from belts, etc.	Sealing form upgrade--Optimize the sealing method between the front end of the vibrating screen and the thresher to reduce the leakage of dust, grass clippings, etc., improve the working environment of the diesel engine and hydraulic components, and apply glass glue after welding the thresher frame to improve the sealing effect

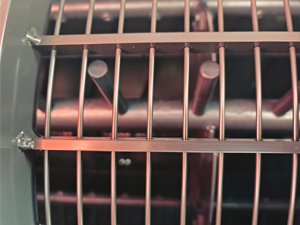

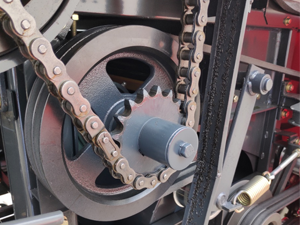

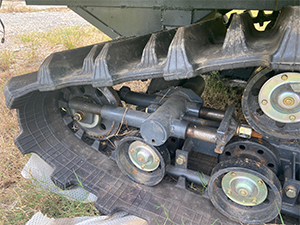

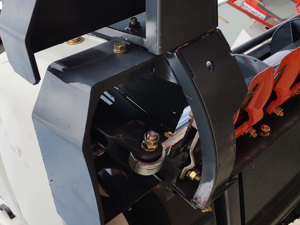

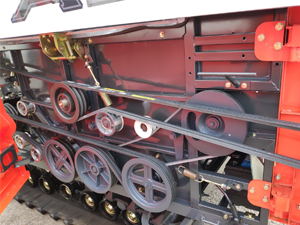

The guide wheel adopts double support rods- it reduces the uneven force caused by track offset and increases the service life of the wheel system	Threshing structure belt rotation-Reduce downtime caused by overload, quieter operation and less vibration	Chamfering of threshing gear bar- Through precise calculation, the gap between the concave screen and the threshing gear is restricted to reduce grain breakage.	Double anti-collision protection device-protect the safety of the cutting knife

▪ Adopting the "longitudinal axial flow threshing" technology of independent intellectual property products;;

▪ Turbocharged engine, 73kW (100 horsepower), low fuel consumption, sufficient power reserve;

▪ Equipped with a 1300L large grain tank, effectively saving operating costs and improving efficiency;

▪ Standard 270-degree spherical rotation 4-meter long grain unloading drum;

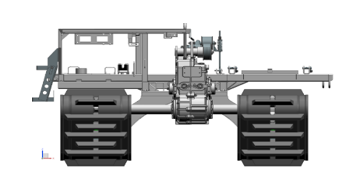

▪ "X-shaped" reinforced chassis, strong carrying capacity, better passing performance;

▪ Optional corn and rapeseed harvesting devices to achieve multi-purpose use of one machine;

▪ Optional lower cutter and stem chopping device to achieve stem return to the field;

▪ Optional beautiful and elegant cab, greatly improving the working environment。

Product Parameters

Sl No	project	A9
1	Product No	1220003299
2	Engine	National II Emission 100HP,73kw
3	Dimensions	5550mm×2670mm×3050mm
4	Header Width	Standard 2200mm
5	Minimum ground clearance	300mm
6	Threshing method	Longitudinal axial flow，Φ605×2020
7	Crawler	5390450 High flower D-type teeth
8	Drive mode	45cc HST+85 model GearBox
9	Chopper	No
10	Feed Capacity	6kg/s
11	Fule Tank Capacity	180L
12	Grain Tank Capacity	high-level unloading，1300L
13	Cab	Awning with fan
14	Loading standard	3 unit/40HQ
