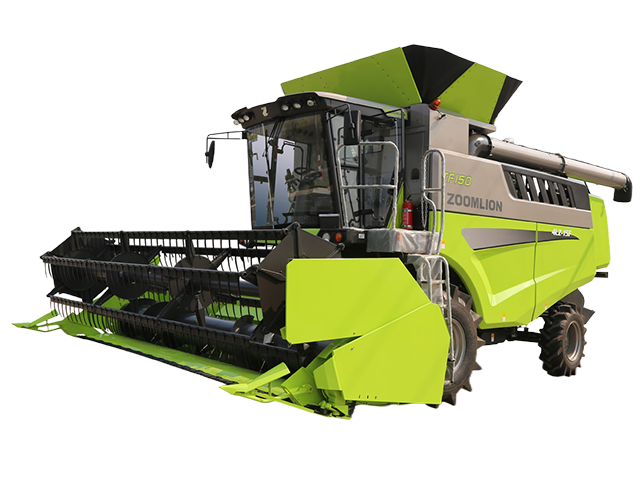

TF150

EFFICIENT AND VERSATILE HARVESTING WEAPON TF150 combines high technology with excellent performance, making it more efficient, reliable and high-quality, it’s an excellent choice for your grain harvesting operations

300hp

Horse Power

9000 litres

Grain tank capacity

28 t/h

Feeding capacity up to

1250 ha

Area per season over

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

High efficiency, high reliability, low loss, and low breakage.

By replacing the header and adjusting the main machine's working parameters, you can harvest a variety of crops.

TF150 KEY FEATURES: HIGH EFFICIENCY

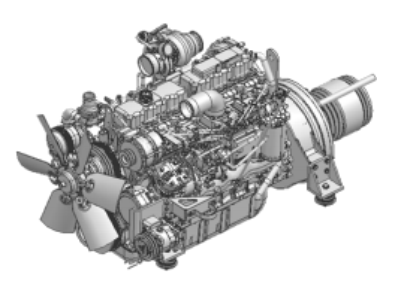

Powerful and stable power system

▪ The 300hp engine uses a Bosch fuel system, a 250bar high explosion pressure cylinder, and a 2000bar fuel system, which can easily cope with complex field conditions and walking conditions, providing continuous

and stable power for harvesting work.

▪ The operator can adjust the engine's multi-power state output (light load, medium load, heavy load) to easily reduce fuel consumption.

▪ The engine cooling fan blades are intelligently hydraulically driven, which can automatically clean the radiator core and reduce equipment maintenance time.

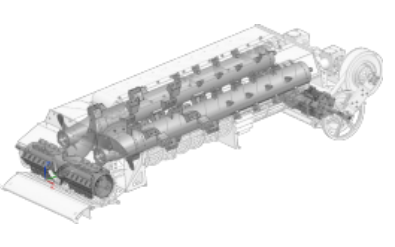

High efficiency and low loss double bullet threshing and separation system

▪ The front section of the drum adopts a 13° low cone angle guide cone, combined with high-strength and

large-pitch conveying blades, to make crop feeding more efficient; the middle section adopts a corrugated rod rubbing element, which makes threshing gentler; the last section is equipped with an inclined separation plate to accelerate the backward movement of the material and reduce the separation load of the drum.

▪ The system can be widely used in the harvesting of various crops such as wheat, corn, soybeans, and rice. Our company's flexible threshing technology can achieve a wheat harvest loss rate of less than 0.4% and a corn harvest grain breakage rate of less than 1%. It can achieve precise threshing and efficient harvesting, allowing farms to reduce losses and increase revenues by hundreds of thousands of dollars each year by purchasing our equipment.

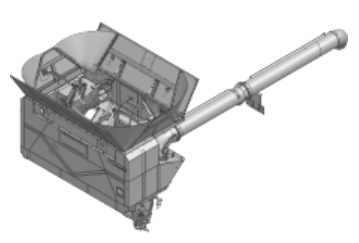

Large-capacity grain tank, high-speed grain unloading

▪ The electronically controlled opening and closing large grain tank has a capacity of 9000L,which reduces

the time and frequency of grain unloading during harvesting, increases the operating area per unit time, and makes work more efficient.

▪ To ensure that you will not waste too much time in the grain unloading process, we have also specially designed a spiral conveyor with a diameter of 300mm, and the grain unloading speed can reach 60 L/S.

▪ The maximum grain unloading height of 5m and the 95-degree grain unloading barrel expansion angle can perfectly adapt to the plain trailer combined harvesting operation.

TF150 KEY FEATURES: LOW LOSS, LOW BREAKAGE

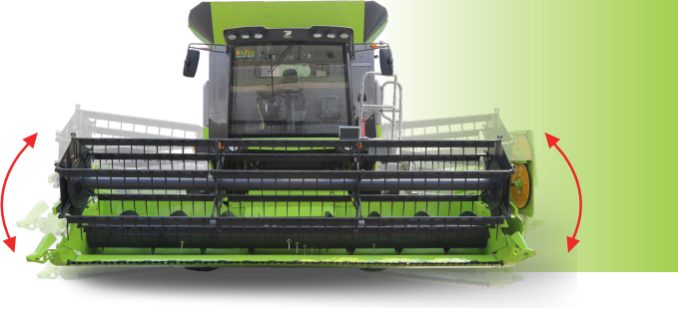

Floating profile modelling

▪ The bridge can float left and right, ensuring fast cutting and minimizing feeding losses even when working on a 10°slope.

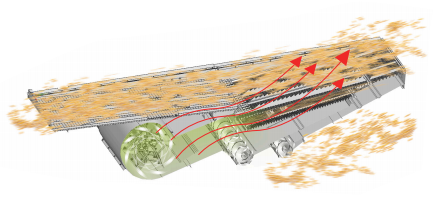

Intelligent air separation and threshing system

▪ The gap of the double-layer fish scale cleaning screen is intelligently adjustable to adapt to crops of different particle sizes. High-precision manufacturing and assembly ensure the consistency of the gap of the entire screen, ensuring that the crops harvested in the granary are clean and tidy with low impurities.

▪ The wind speed is stepless and adjustable to adapt to the type and state of the harvested crops.

▪ The high-frequency vibrating screen box is independently developed by Zoomlion top-lev- el structural team, using 900Mpa high-strength steel material and high fatigue resistance welding technology.

TF150 KEY FEATURES: HIGH RELIABILITY

High-standard R&D system

▪ The product integrates our company's advantages in engineering machinery research and devel-opment, and applies a number of mature technologies to the development of harvesting machin-ery.

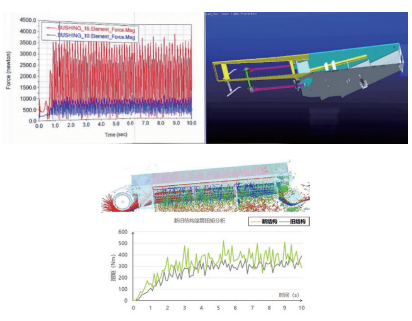

▪ Use dynamic stiffness fatigue simulation technology to optimize the life of the structure, ensure that the structural parts will not crack for 10 years, and improve the NVH performance of the vehicle and driving comfort.

▪ Multiphase flow simulation technology optimizes the detailed structure of the working device according to the flow of crops inside the harvester, improves threshing efficiency, and reduces breakage and loss.

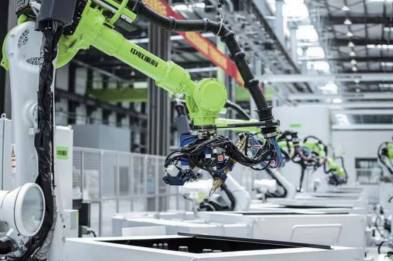

Highly consistent automated production line

▪ The ability to manufacture complex structural parts and integrate electro-hydraulics ensures that every detail of the whole machine reflects the exquisite design and craftsmanship, ensuring that the reliability of the whole machine is world-leading.

▪ The intelligent production line ensures the high standards and consistency of the manufacturing process, creating the world's safest and most reliable harvesting machinery.

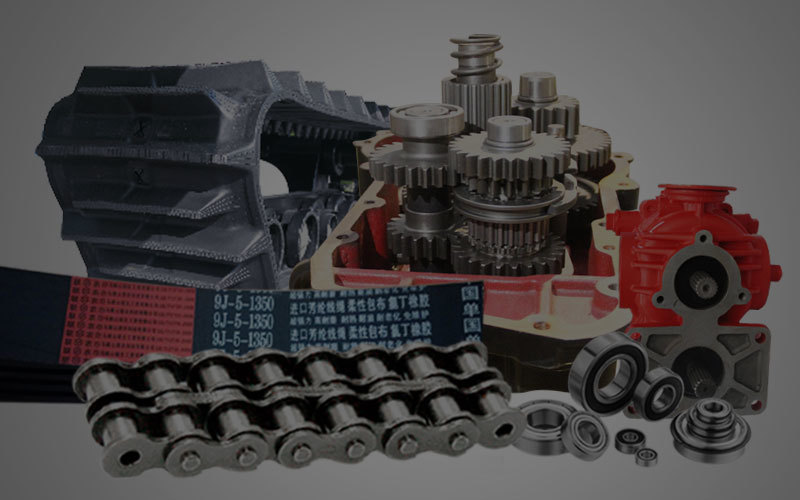

High-quality key components

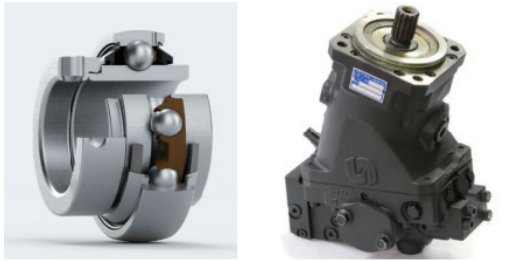

▪ Key hydraulic components and key transmission parts such as bearings and belts are made of international brands with high reliability. The rubber, plastic, steel and electrical materials of the whole vehicle are all made of high-cold and high-heat resistant materials, which can adapt to harvesting operations in extremely cold and high-temperature areas.

TF150 KEY FEATURES: COMFORTABLE, CONVENIENT,AND USER-FRIENDLY

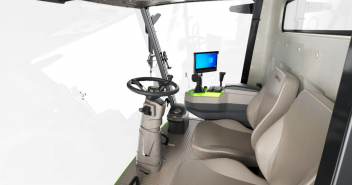

Terrajet CAB

▪ The latest Terrajet cab is a perfect combination of comfort and convenience.

▪ Equipped with air conditioning and a mini car refrigerator, the driver and passengers can enjoy comfort during operation regardless of the cold or hot weather.

▪ The electronically controlled air suspension seat can be adjusted to the most comfortable state according to the needs of the operator, absorbing the impact of road bumps and making driving less tiring.

▪ The excellent sound insulation and shock absorption technology of the cab greatly improves the driver's driving experience.

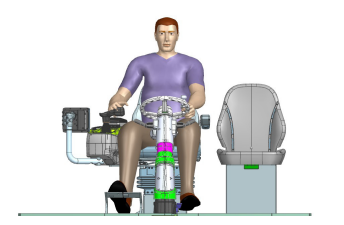

Convenient human-computer interaction

▪ The human-machine interaction design based on three-dimensional simulation ensures that the cab has a large visual range, and the view of the header, crops and roads is good during the harvesting process. The internal control panel is easy to operate, which improves the operator's work efficiency.

▪ The six-way adjustable steering wheel can meet the operating habits of different drivers and further enhance the driving experience; the multi-function joystick makes each operation simple and easy.

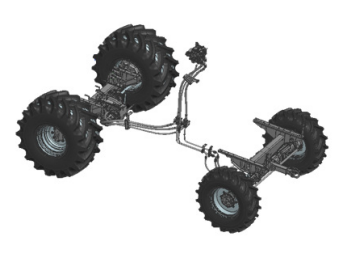

Powerful and stable H-drive chassis system

▪ Zoomlion unique H-drive chassis system has extremely strong passability and adaptability. Whether it is high-speed transfer, or rugged slopes and muddy fields during harvesting, it can be unimpeded. The core hydraulic time-sharing four-wheel drive system provides precise control for the torque distribution switch between the front and rear axles, so that the vehicle's power distribution in different terrains always remains in the optimal state.

GRAIN HEADER

Cutting width 6.1 m

For wheat and rice harvesting

GRAIN HEADER

Cutting width 5.6 m

For soybean, wheat and rice harvesting

CORN HEADER

6 rows spacing 650/700/750 mm

8 rows spacing 500/650/700 mm

TROLLEY

Maximum load

capacity 4000 kg

TF150- OPTIONAL ACCESSORIES

Product Parameters

Header and bridge
Electronic floating	●
Planetary gearbox	●
Wheat header 6.1m	○
Flexible header 5.6m	○
Corn header 6-row 8-row	○
Header trailer	●
Bridge reversal	●
Threshing and cleaning
Cutting flow + double longitudinal roller	●
Number of threshing rollers	2
Longitudinal axial flow main separation roller	●
Roller size (mm)	Ф480×3180
Grid type concave plate screen	●
Cleaning area (m2)	4.3
Re-threshing	●
Centrifugal fan	●
Number of fans	1
Fan diameter (mm)	Φ650

Grain tank
Electronically controlled opening and closing	●
Grain tank capacity (L)	9000
Grain unloading speed (L/s)	55
Grain unloading height (m)	5
Cab
Terrajet	●
Cab noiselevel (dB)	80
Integrated LCD display	●
Six-way imaging	●
Air suspension seat	●
Traveling system
Drive mode	Hydraulic part-time four-wheel drive
Guide wheel tire specifications	14.9-24 (8-level)
Drive wheel tire specifications	28L-26 (16-level)
Guide wheel track	2550
Drive wheel track	2900
Wheelbase	3586

Power system
Engine model	YCA07K300-T300
Rated power (kW)	221
Rated speed (r/min)	2200
Fuel tank capacity (L)	600
Whole machine
Overall dimensions (mm)		10350×3800×3975
Weight (kg)		12650
Minimum ground clearance (mm)		380
