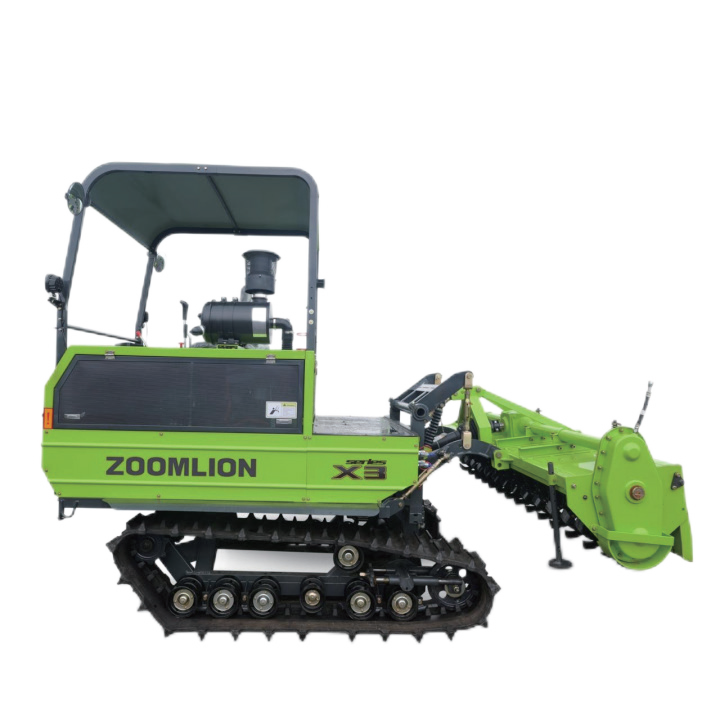

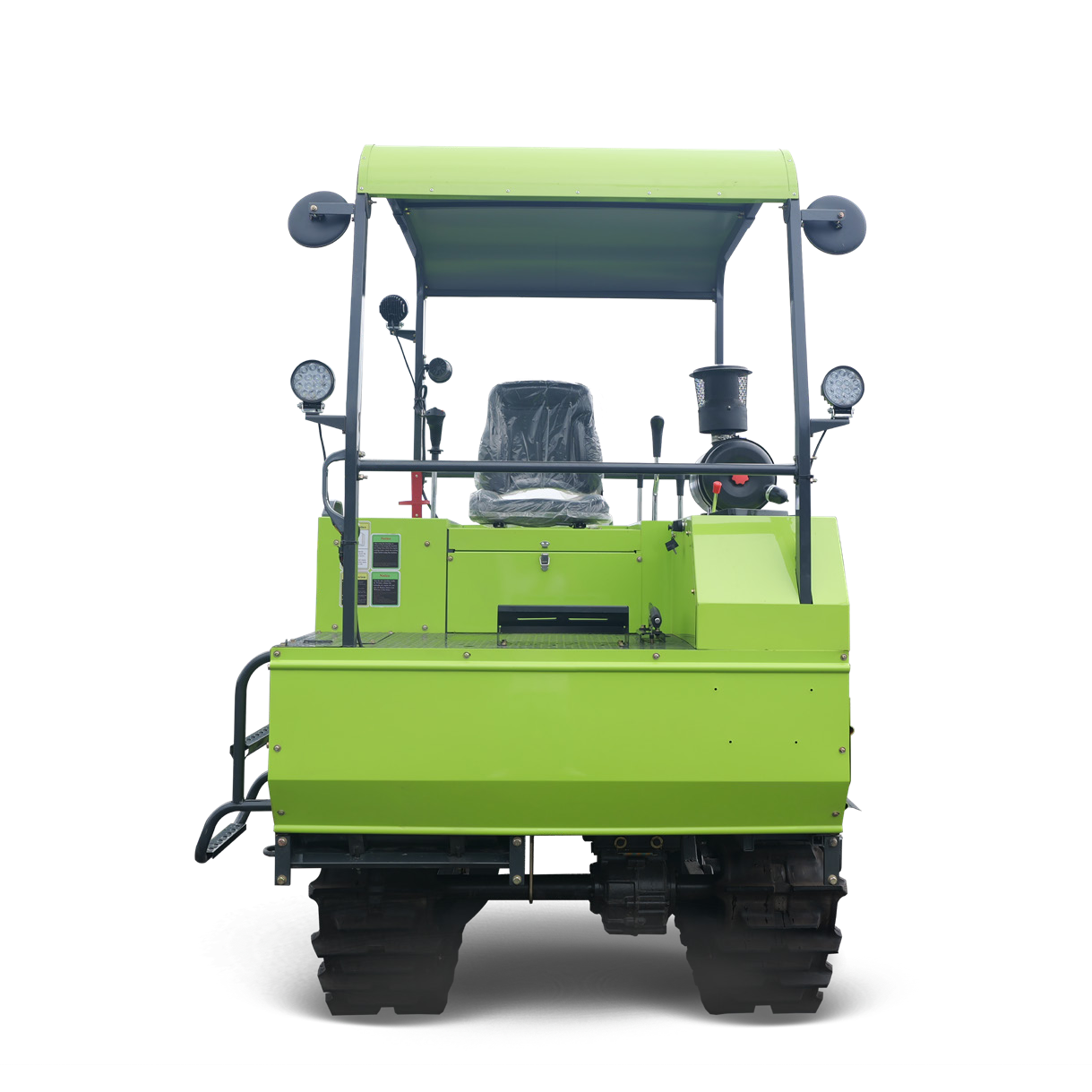

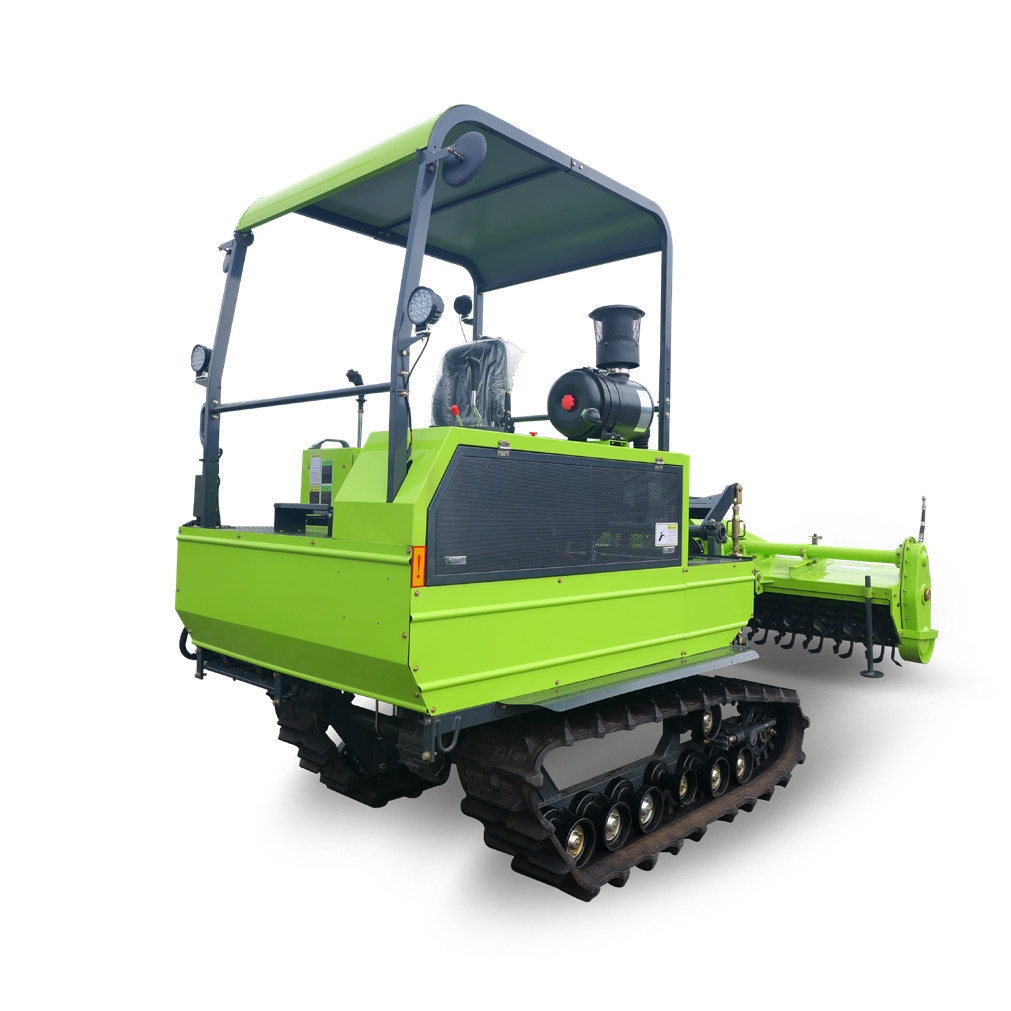

X3 Crawler Self-Propelled Rotary Tiller

Applicable to paddy field rotary tillage, plowing, land reclamation and other working conditions.

100 hp

Power

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

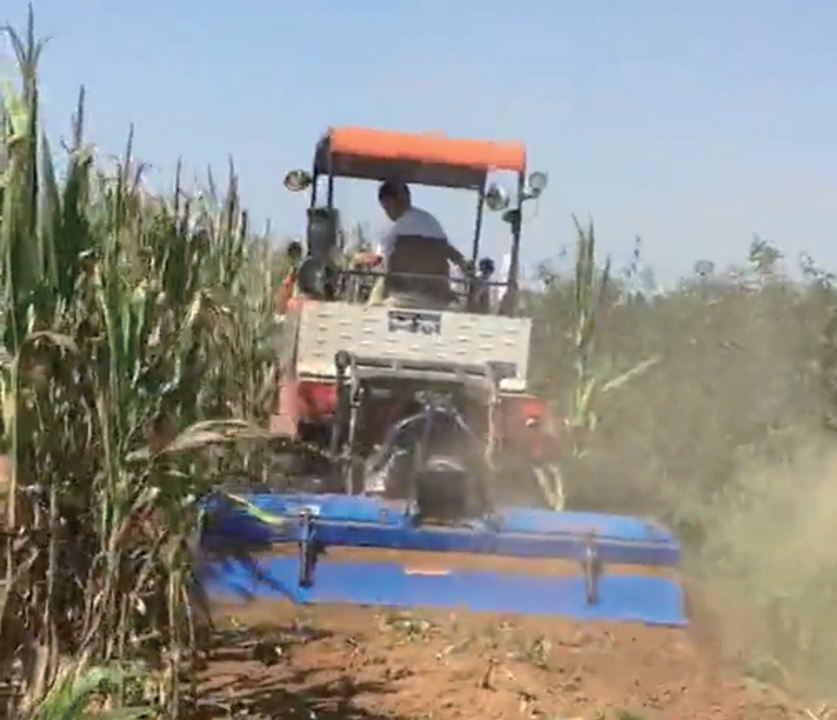

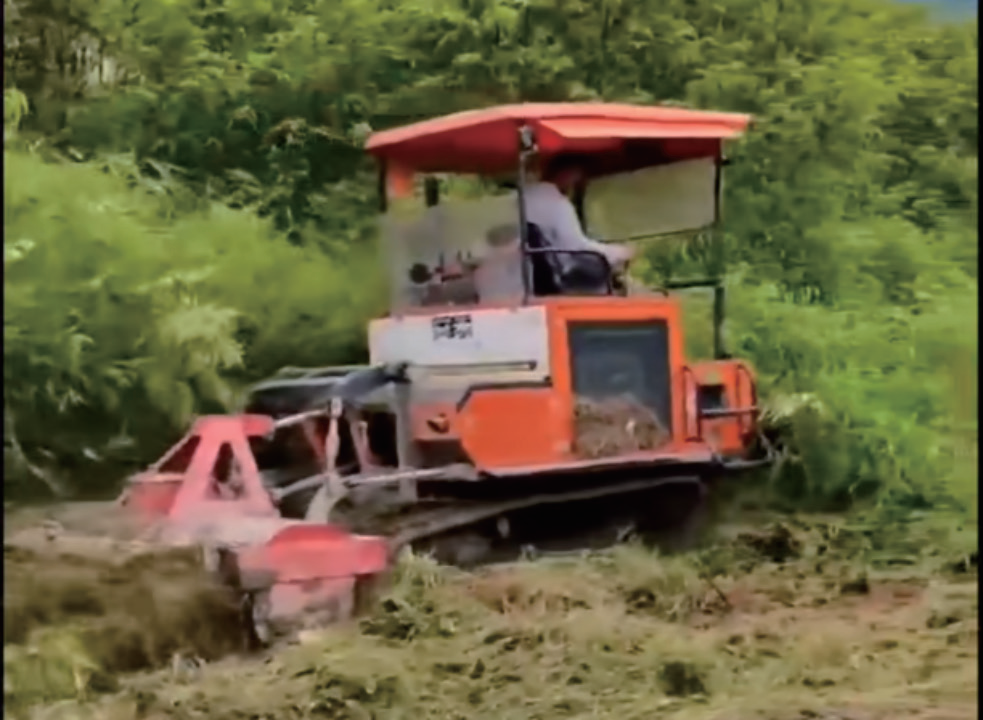

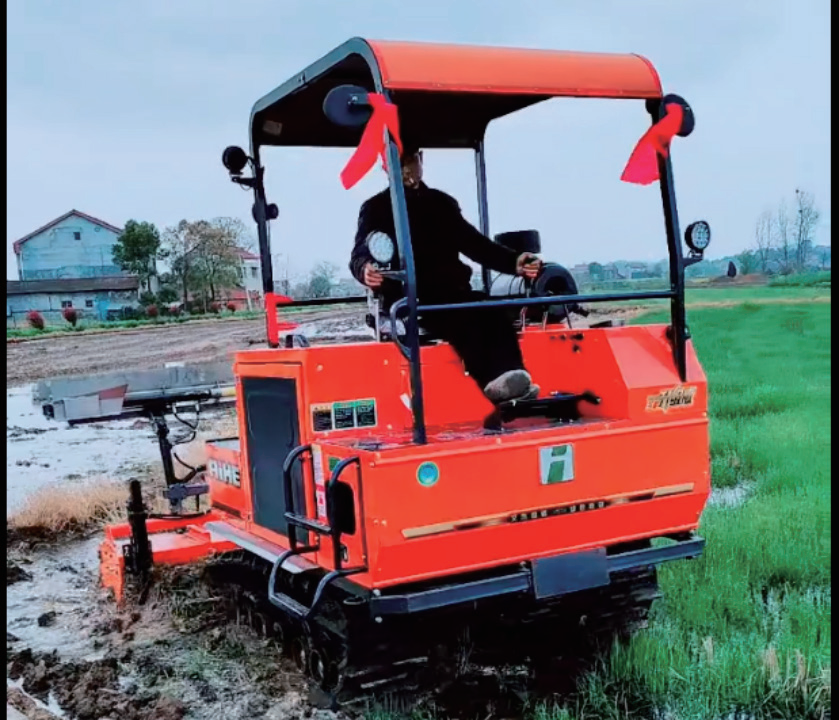

Paddy field beating operation	Dry field rotary tillage	Land reclamation work

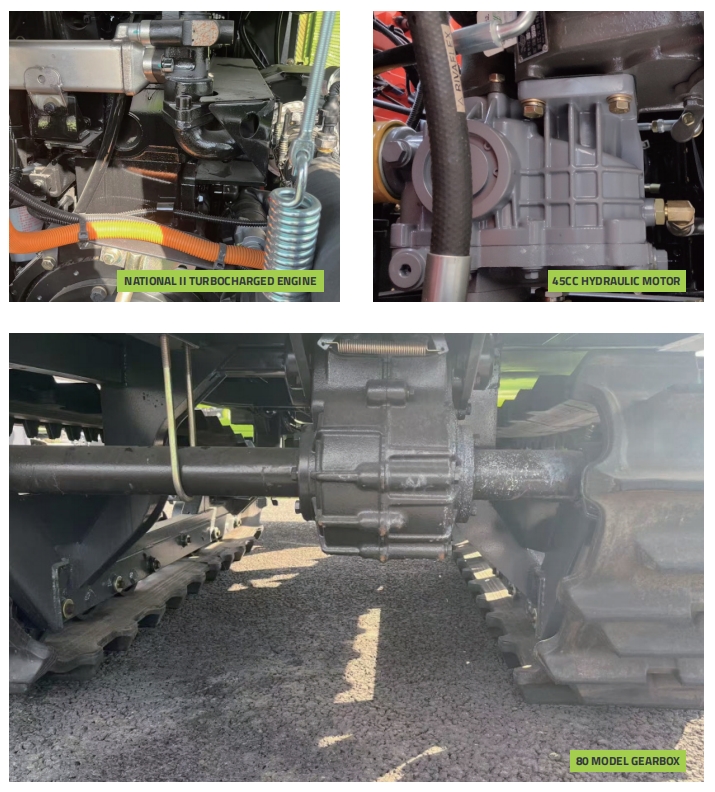

TRIPLE A COMBINATION, HIGHER EFFICIENCY

It adopts 73kw National II engine, mechanical 80 gearbox, 45 displacement hydrostatic continuously variable transmission, affordable price and stable performance

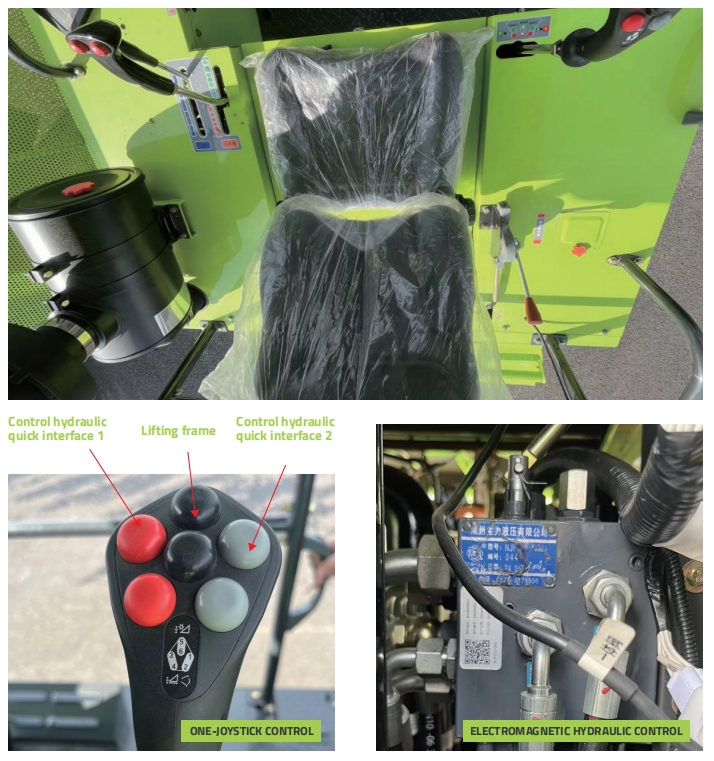

SIMPLE OPERATION, EASY TO USE

· Electromagnetic hydraulic and hydrostatic control technologies are applied

· Multi-function combined joystick: One-joystick control, left and right steering, hydraulic quick interface, lifting frame

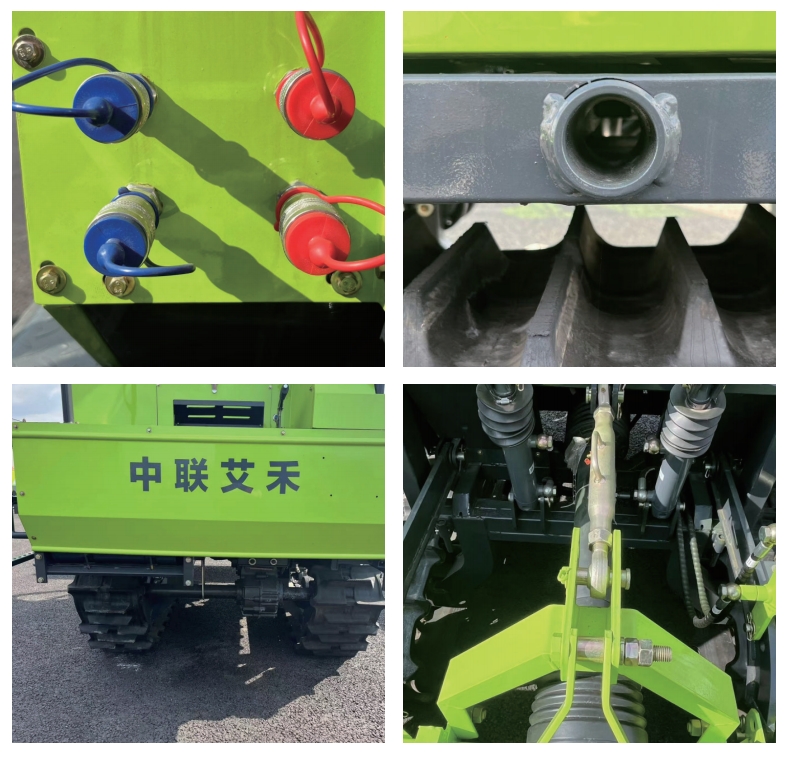

RICH CONFIGURATION AND STRONG ADAPTABILITY

· Reserved hydraulic support installation position, more convenient maintenance

· Equipped with 2 sets of hydraulic quick configuration, rich adaptability and fast interface,meeting the installation needs of most machines and tools

· Added anti-collision beam, which can prevent collision and facilitate the installation off ront counterweight

· Three-point suspension is equipped with double hydraulic cylinders as standard, which is more efficient and stable

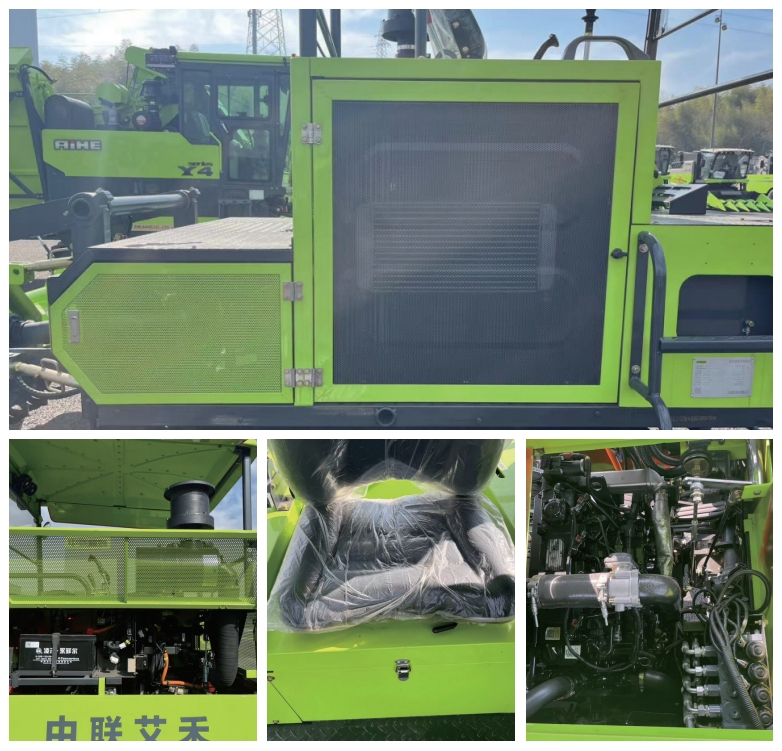

EXQUISITE DESIGN, EASY AND SIMPLE MAINTENANCE

· Adjustable seats to meet the needs of customers of different body shapes

· The power compartment, radiator cover, and left side large cover can all be opened without tools

· The overall layout is more compact and maintenance is more convenient.

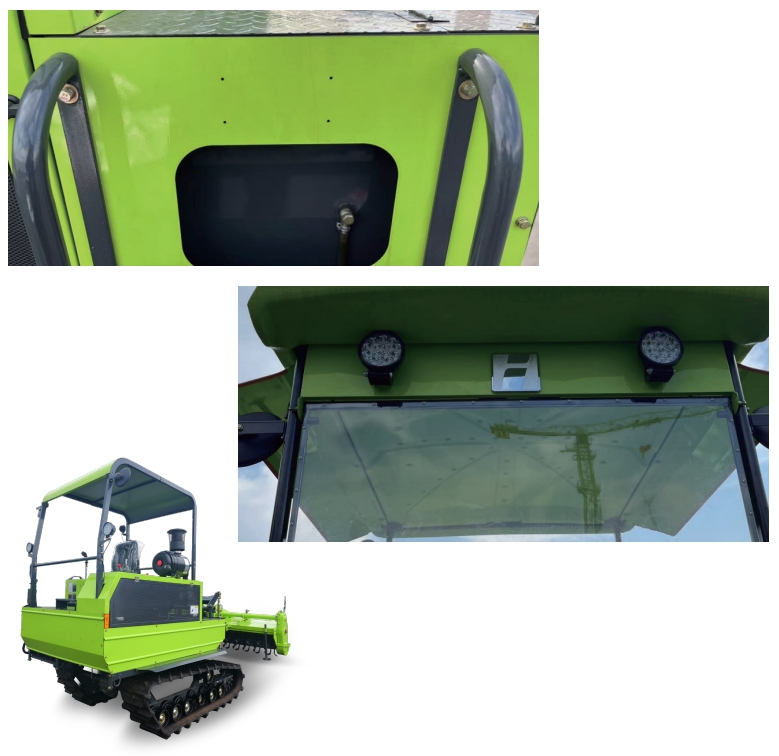

COMFORTABLE DRIVING AND CONVENIENT REFUELING

· Multi-directional combined power shock absorption system greatly improves the power shock absorption effect, ensuring comfortable driving and stable power operation.

· Convenient refueling and optimized overall structure.

· Full LED light source with higher brightness, longer range, wider range and longer life.

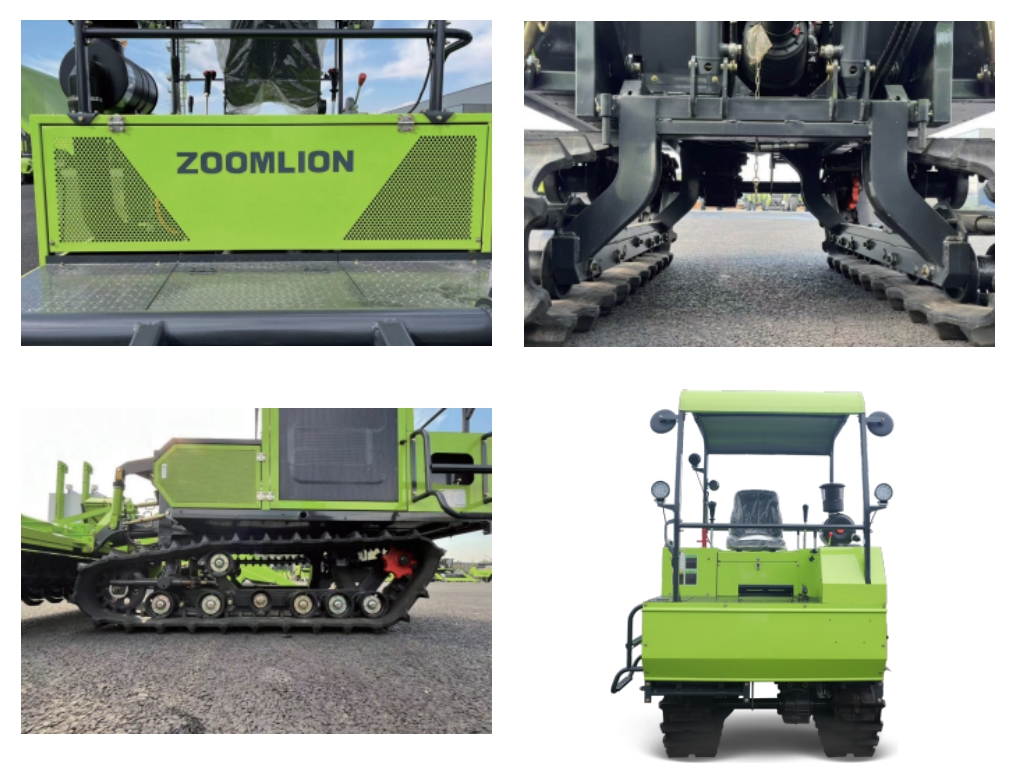

STRONG AND DURABLE, LONG LIFE

· The grid-type rear heat dissipation panel greatly improves the heat dissipation capacity and ensures efficient and stable operation of the engine.

· The thickened track wheels and increased clearance between the track wheels and tracks extend the service life of the track wheels and tracks.

· The new "八" beam chassis has a stronger load-bearing capacity, a more durable chassis, and more comprehensive protection.

STRONG TRACTION CAPACITY

· Adopts 100HP engine, and its traction efficiency is 27% higher than that of a wheel tractor, and its traction force is 1.4~1.8 times that of a wheel tractor.

NO DAMAGE TO THE FIELD, SMALL GROUNDING PRESSURE

· Its deadweight is 10% less than that of competing products, and the actual measured ground seedling emergence rate of crawler rotary operation is over 80%, reaching the industry's first-class level and more than twice that of wheeled tractors.

HIGH PADDY FIELD EFFICIENCY

· It can till 3 mu of land 3 times per hour, consumes 4 liters of fuel, has a small turning radius, strong climbing ability, and is agile in field movement. Its efficiency is 1.3 times that of competing products with the same horsepower.

Product Parameters

PROJECT	X3
Product No	1220003302/1220005043
Dimensions	3580×2470×2670
Control method	joystick control
Drive mode	HST+gear Box
Minimum ground dearance	330
Weight	2313 kg
gauge	1200mm
Crawler	9040051(Optional 450mm)
PTO speed	670 r/min
Tillage Width	2300 mm
Engine	73kw
Loading standard	3 unit/40HQ
