GlobalFuel Oil & Gas
- Product comparison
Features

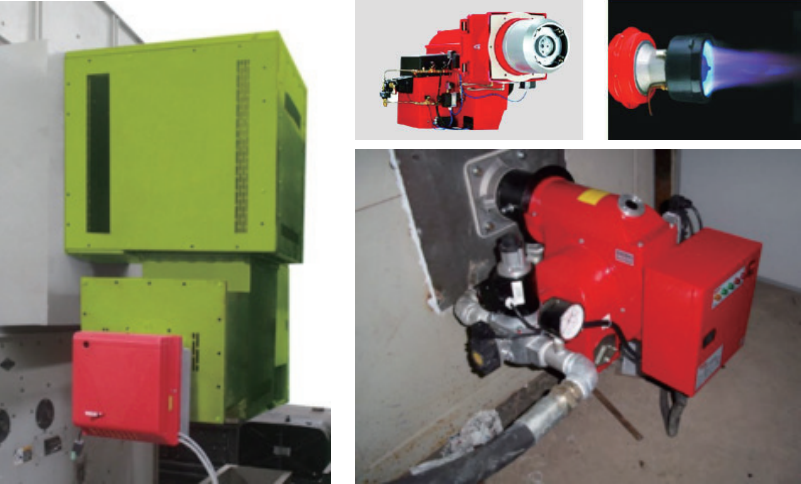

Fuel oil and gas heating system is to use fuel direct combustion, after high purification treatment to form hot air, and material direct contact heating drying or baking. The fuel consumption is about half less than using steam or other indirect heaters, greatly saving fuel costs, drying after grain quality is not affected, reducing input costs.
Product Parameters
|
model |
unit |
RG5D |
RL34MZ |
|
|
burner operation mode |
/ |
Dual-section flame |
Dual-section flame |
|
|
heating capacity |
kW |
106/130-237 |
95/142 - 296 |
|
|
|
Mcal/h |
91,2/111,8-203,8 |
81,7/122,1-254,6 |
|
|
|
kg/h |
2009/11/20 |
2008/12/25 |
|
|
working humidity |
°C |
0--40 |
0--40 |
|
|
net heating value |
kWh/kg |
11.8 |
11.8 |
|
|
|
kcal/kg |
10200 |
10200 |
|
|
viscosity |
mm2/s (cSt) |
4+6（At 20 ℃) |
4+6（At 20 ℃) |
|
|
oil pump model |
/ |
R.B.L |
R.B.L |
|
|
pump oil consumption |
kg/h |
30（at 12bar） |
35（at 12bar） |
|
|
atomizing pressure |
bar |
8-+15 |
8-+15 |
|
|
fuel temperature |
℃ |
50（max.） |
50（max.） |
|
|
pump oil consumption |
kg/h |
30（at 12bar） |
35（at 12bar） |
|
|
dryer quantity(max) |
5HXG-10W |
1 |
- |
|
|
5HXG-12.5W |
1 |
- |
||
|
5HXG-15W |
1 |
- |
||
|
5HXG-30W |
- |
1 |
||
