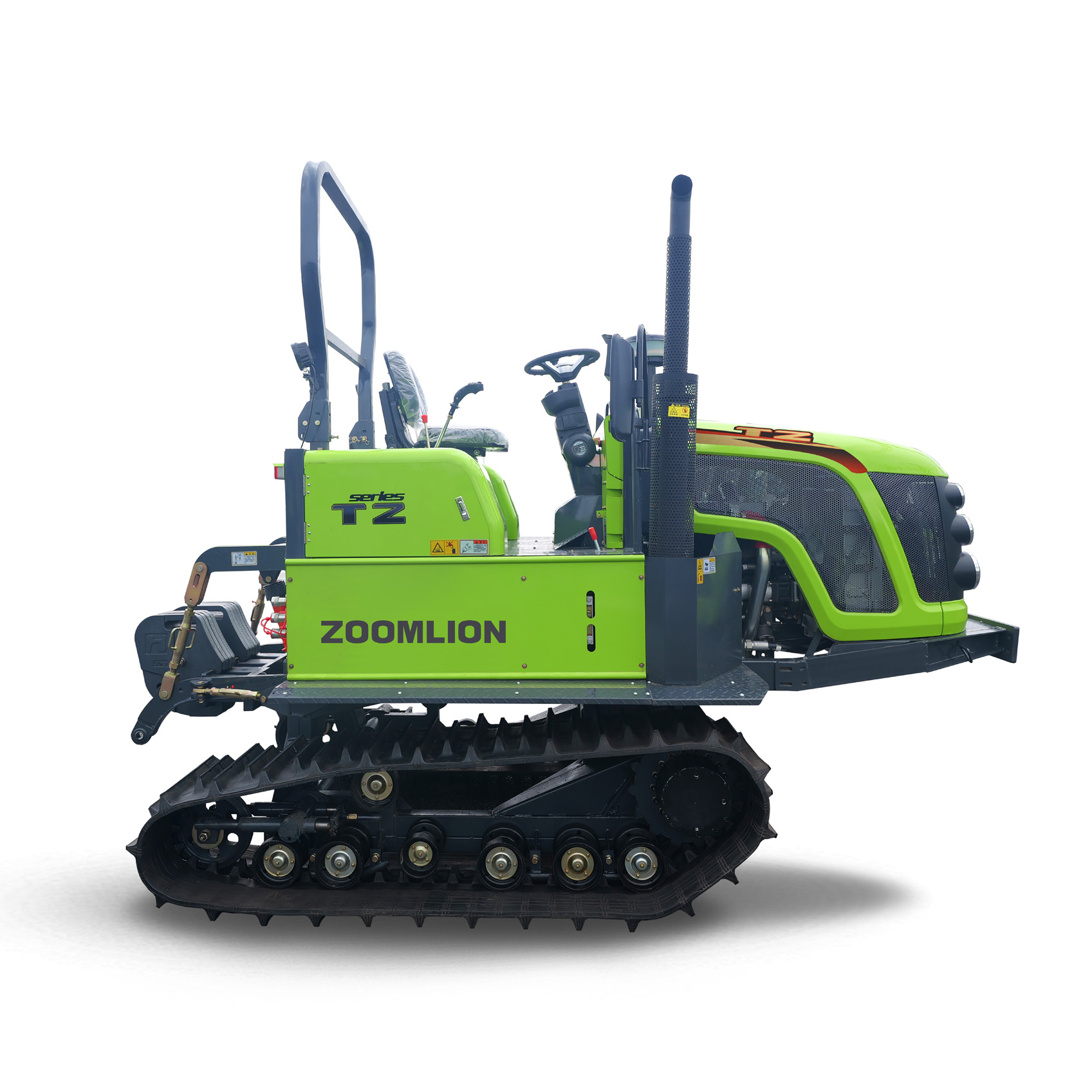

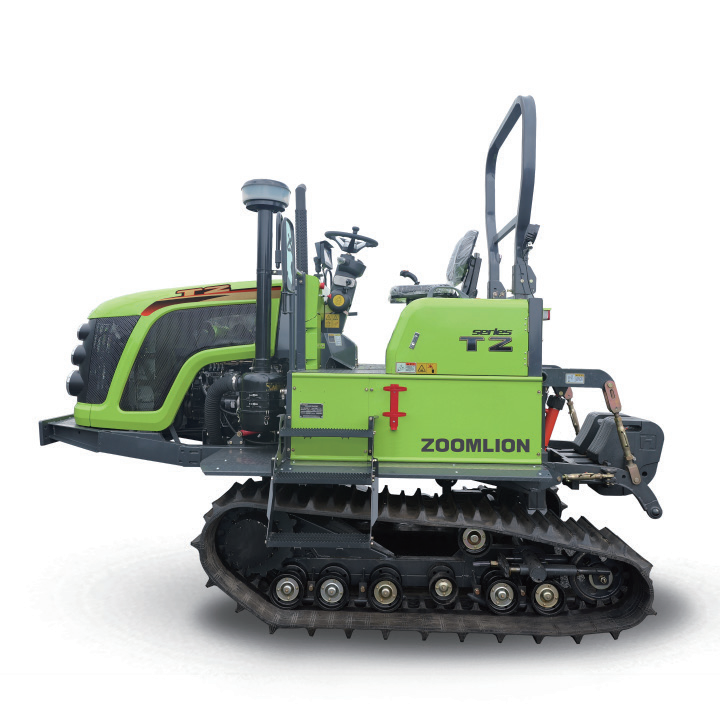

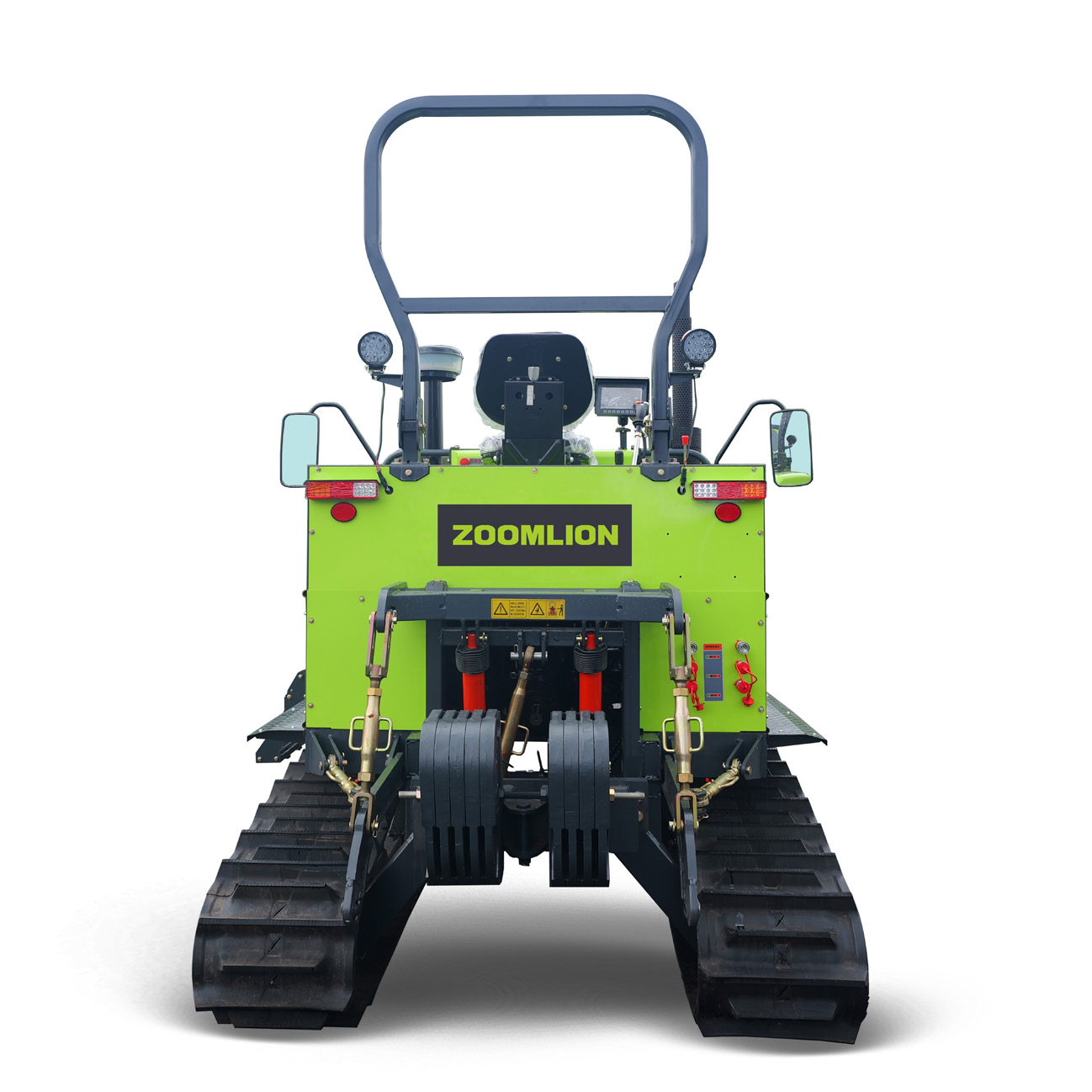

T2 Crawler Tractor

Crawler tractors are the perfect solution for paddy field operations. They solve the problem of rotary tillage in deep mud and change the uneven paddy field caused by unilateral braking when turning that occurs in the original crawler rotary tillers, greatly improving operation efficiency.

Get Quote

Product comparison

Product comparison

Total X Clear all

Features

MAIN SELLING POINT: POWERFUL

POWERFUL

HYDRAULIC DUAL-DRIVE

73kW (100 horsepower) turbocharged National III engine,

with sufficient power reserve, making operation easier;

The variable speed pump + hydraulic motor (hydraulic dual-drive) greatly improves the paddy field passing capacity and can rotate 360 degrees on the spot.

MAIN SELLING POINT: HIGH OPERABILITY

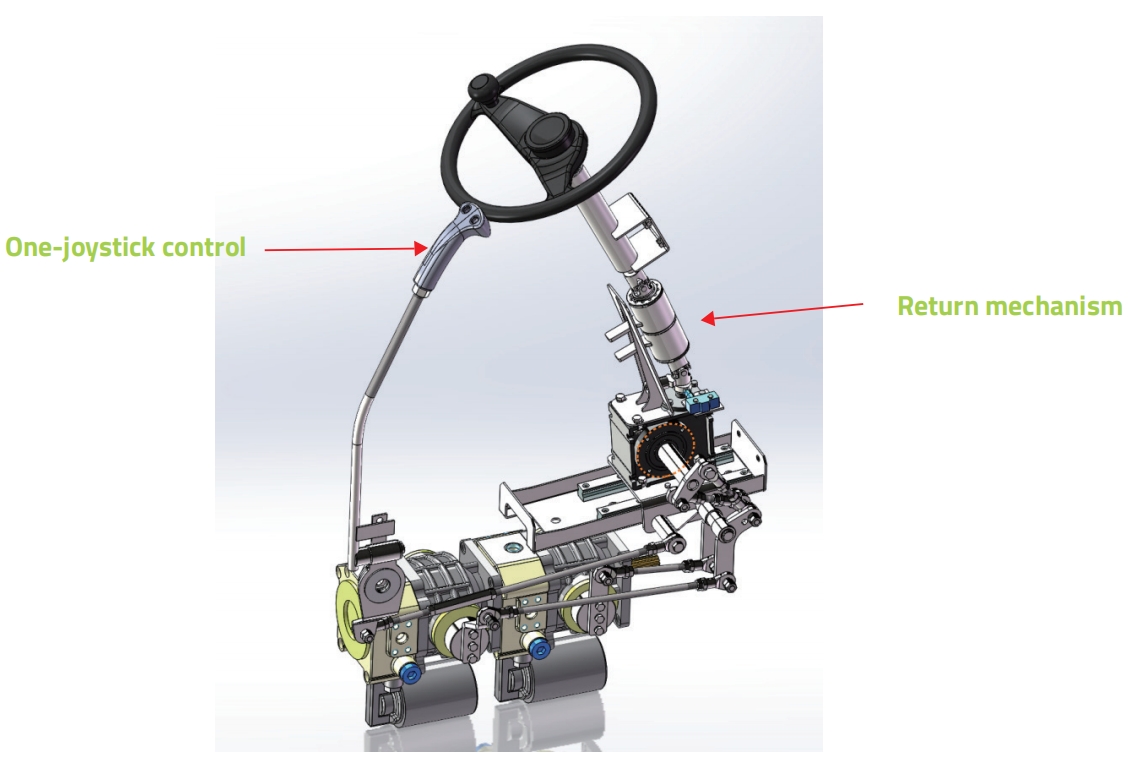

STEERING WHEEL STEERING CONTROL SYSTEM

· The steering wheel-type steering control mechanism with return function has easy operation force and is not easy to produce operation fatigue, and reduces deviation;

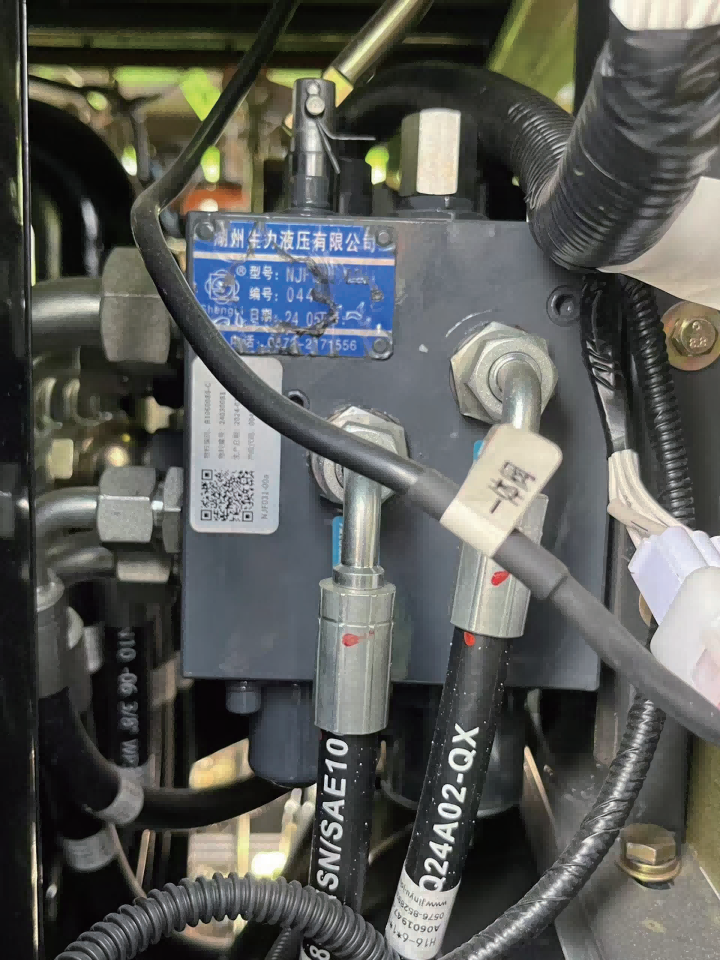

· Hydraulic and electromagnetic hydraulic control system, walking and steering operation are smoother and more comfortable;

· Industry-leading steering wheel control technology, through 2 two-way variable pumps to control the steering, abandoning the original left and right crawler joystick mode, reducing the intensity of operation;

ONE-JOYSTICK CONTROL

· The lifting and lowering of the rotary tillage part and the forward and backward movement of the machine are completed by One-joystick, which is in line with the operating habits and reduces the difficulty of operation;

MAIN SELLING POINT: HIGH DURABILITY

LONG-LASTING

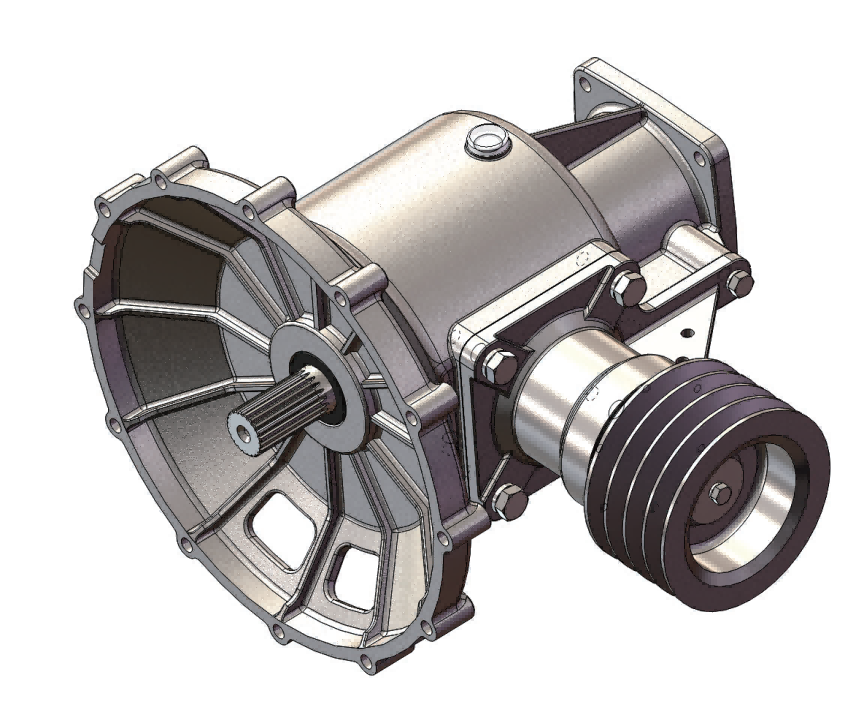

· The sealing performance is enhanced, and the key component transfer case has protective sealing

covers at both ends to improve the overall sealing performance;

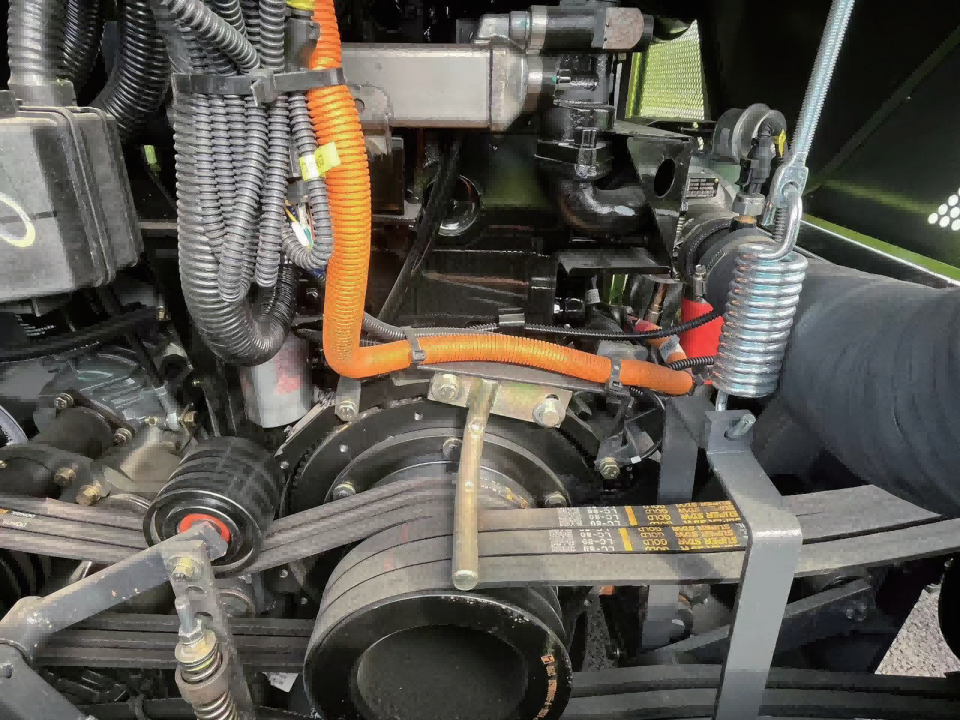

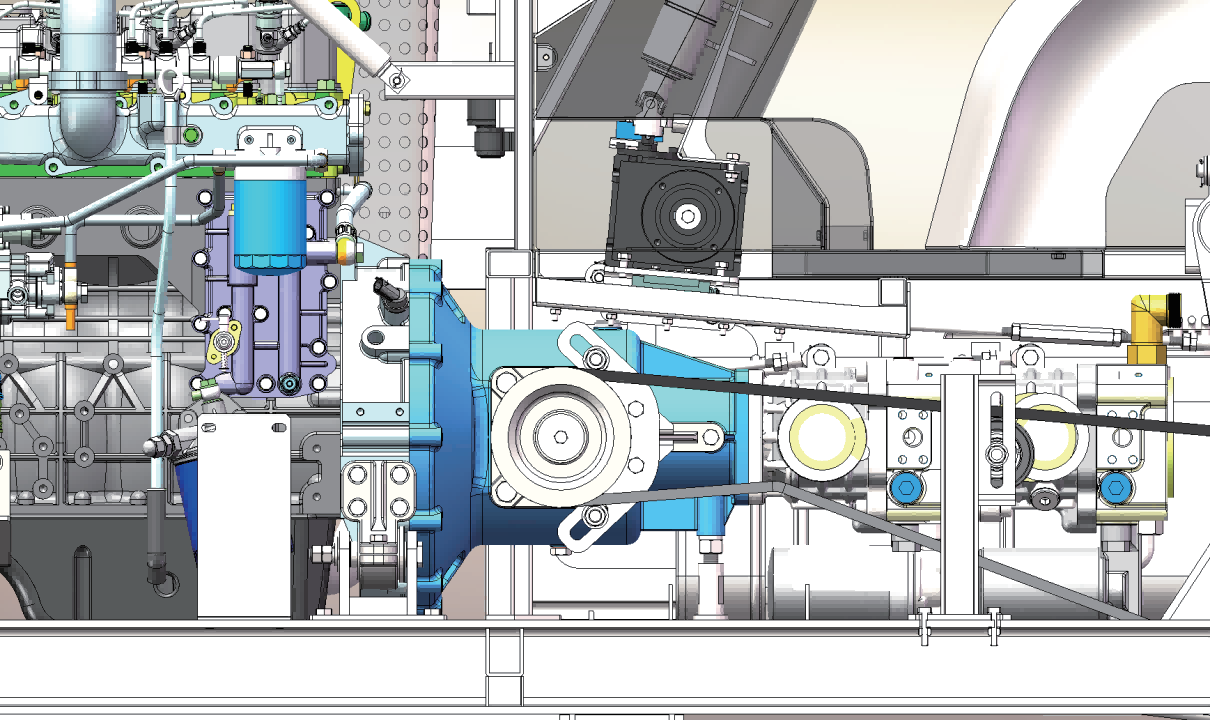

· The failure rate is reduced, and the transfer case body is directly fixedly connected to the power,

which increases the stability of power output and reduces the failure rate caused by vibration;

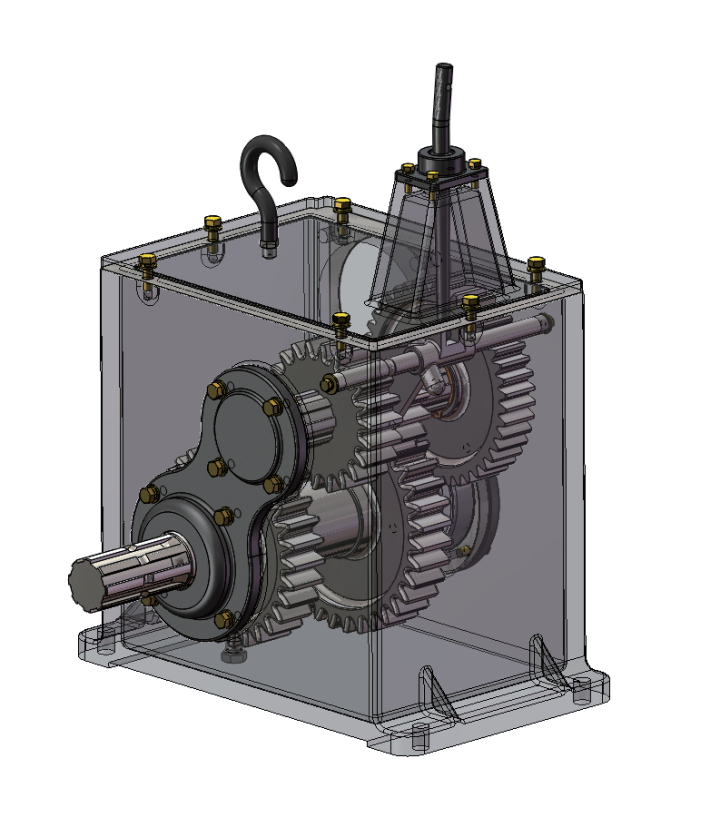

· The original two-stage speed regulation power output transmission box meets the requirements

of different machines for power access, expands the use of the machine, and improves the utilization rate of the machine;

MAIN SELLING POINT: HIGH PASSABILITY

HIGH PASSABILITY

STRONG ADAPTABILITY

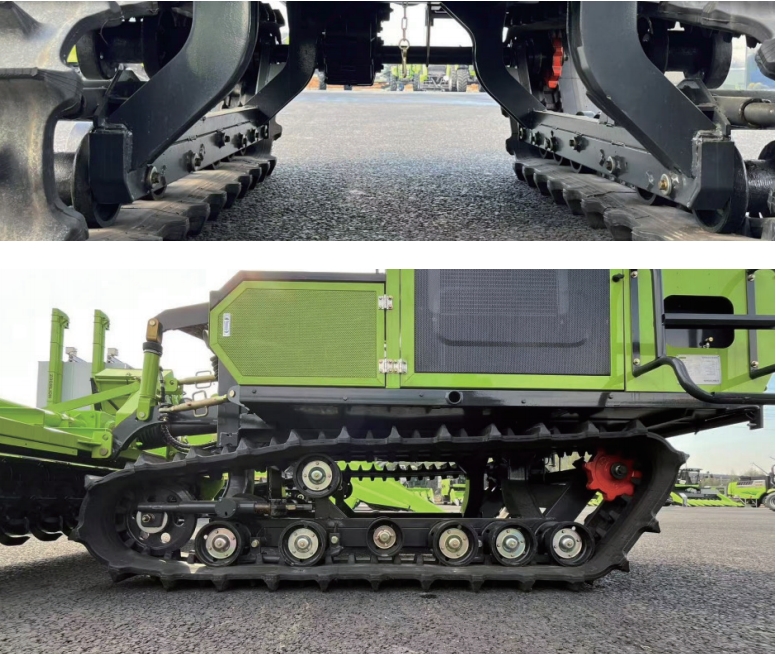

· "八" reinforced chassis, strong load-bearing capacity, better passability; elevated chassis, better passability in muddy fields

· 450mm * 53 sections * 90mm rubber crawler , adaptable to various paddy field environments, better passability in paddy fields

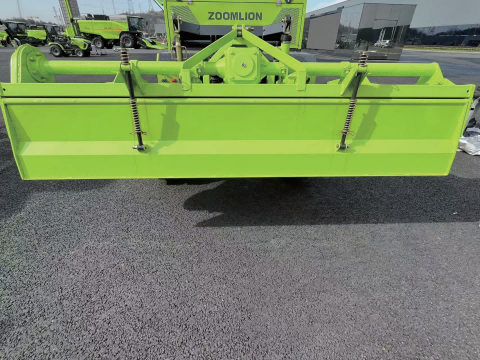

· Optional water and dry dual-purpose rotary tillage harrows can reduce machine purchase costs, improve machine utilization, and increase revenue;

· Optional automatic balancing lifting system can improve operating efficiency and ground flatness;

· Optional grain transport, ridging, ditching and other machines can be used for multiple purposes;

STRONG TRACTION CAPACITY

· It uses a 10HP high-horsepower engine, and its traction efficiency is 27% higher thanthat of a wheel tractor, and its traction force is 1.4~1.8 times that of a wheel tractor.

NO DAMAGE TO THE FIELD,SMALL GROUNDING PRESSURE

· The machine's deadweight is 10% lighter than competing products, and the actualground germination rate during crawler rotary operation is over 80%, reaching theindustry's first-class level and more than twice that of wheeled tractors.

Product Parameters

PROJECT	T2
Dimensions	360019502800
Control method	steering wheel
Minimum ground dearance	475
Weight	2400 kg
gauge	1375mm
Crawler	9045053
PTO speed	540/720r/min
Engine	73kw
